Wireless HDMI Extender Kit HD
Wireless HDMI Extender Kit HD
Couldn't load pickup availability
SKU:
Wireless HDMI Extender Kit

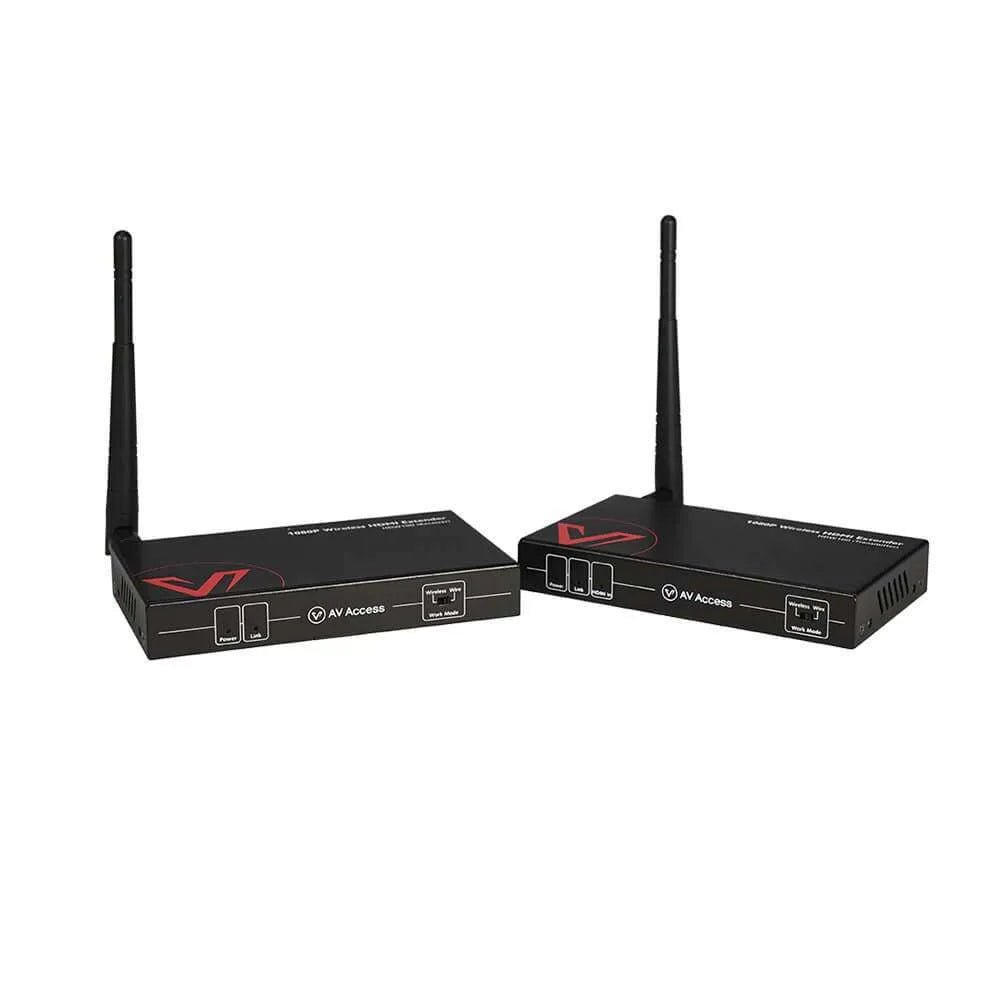

The HDW100 is a professional-grade wireless HDMI extender kit designed to provide high-definition video transmission without the need for complex cabling. Capable of extending a 1080P full HD signal up to 200 metres (line of sight, no interference), this system is an ideal solution for corporate presentations, and educational environments where drilling holes or running long cables is not feasible. The kit operates on a plug-and-play basis, with the transmitter and receiver automatically pairing upon power-up.
Flexible Transmission and Low Latency
The HDW100 offers the unique flexibility of both wireless and wired operating modes. In an open field, it maintains a stable wireless connection up to 200 metres, while in indoor environments with obstructions like drywall, it typically achieves a range of 10 to 50 metres. If a more permanent or high-traffic connection is required, the devices can be toggled to a wired mode via a DIP switch, supporting transmission over a standard category cable up to 120 metres.
Signal transmission is optimized for video playback and presentations with a low latency of approximately 0.1 to 0.2 seconds. While not recommended for competitive real-time PC gaming, it provides a seamless experience for movies, television programs, and professional AV displays. For local monitoring, the transmitter includes an HDMI loop-out port, allowing for zero-latency previewing on a nearby display.
Integrated Control and Ease of Use

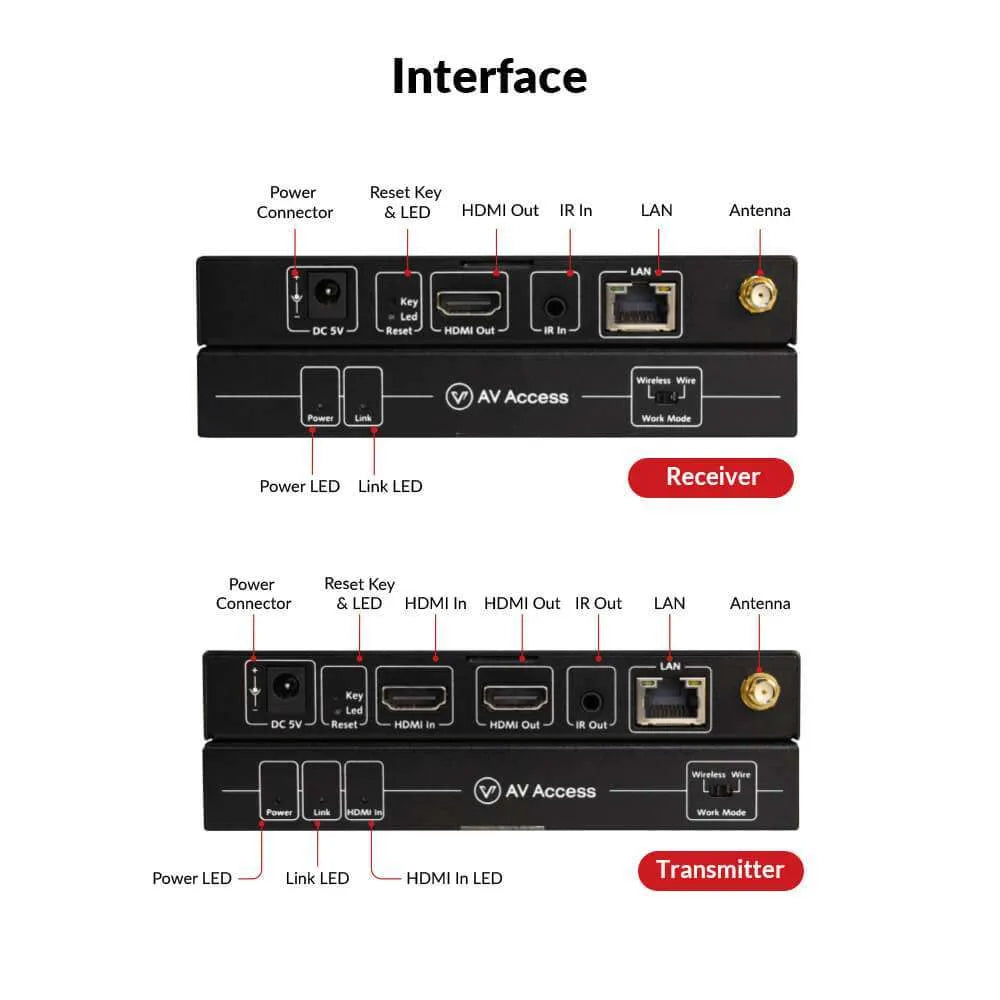

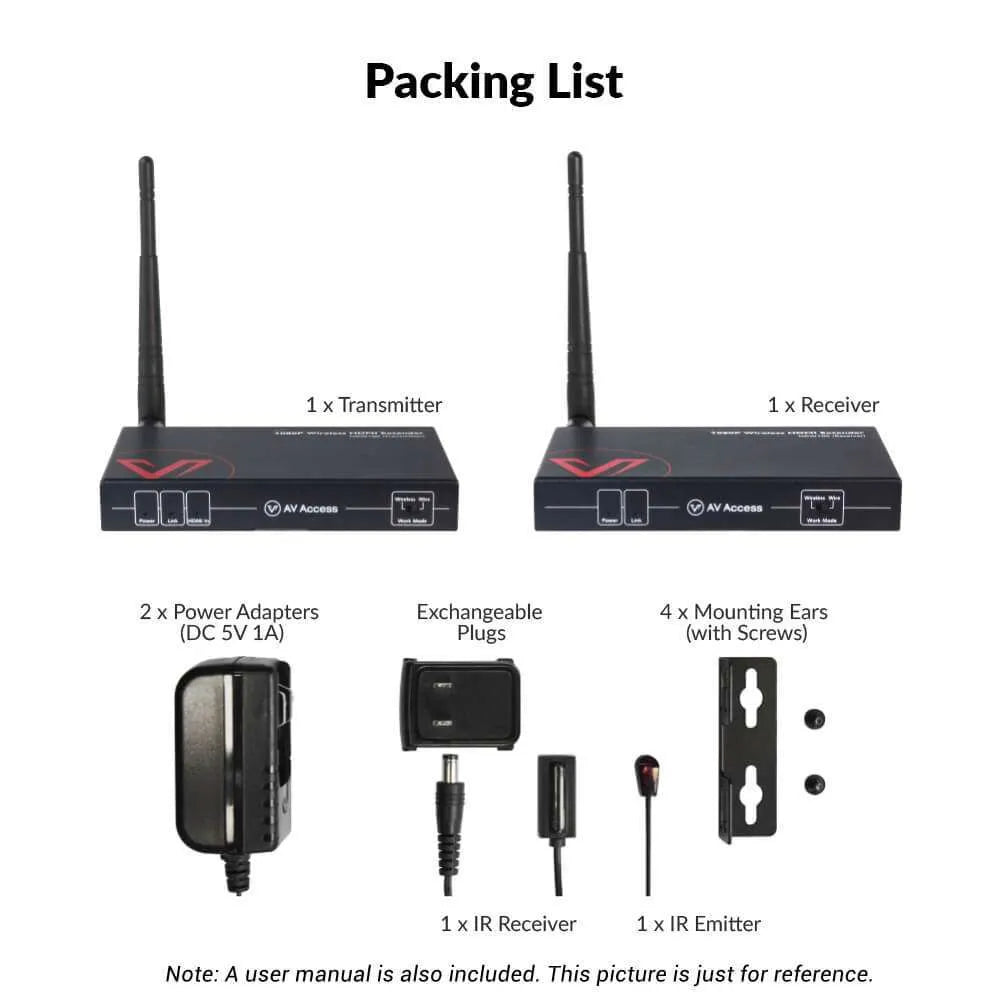

To ensure a complete user experience, the extender includes an IR return function. By using the provided IR emitter and receiver cables, users can control their source device (such as a Blu-ray player or media streamer) from the remote display location using the original remote control. The units are housed in a portable, slimline design and include mounting ears for secure installation behind displays or within cabinets.
Technical Specification Data
| Feature | Detail |
| Max Resolution | 1080P at 60 Hz |
| Wireless Range | 200 metres (Line of sight) |
| Indoor Range | 10 to 50 metres (Through obstructions) |
| Wired Range | 120 metres (Over Category Cable) |
| Compliance | HDMI 1.3 and HDCP 1.4 |
| Audio Format | Stereo |
| Latency | 0.1 to 0.2 seconds |
| Local Output | HDMI Loop-out on Transmitter |
| IR Control | Uni-directional IR Pass-through |
| Power Supply | DC 5V 1A (Adapters included) |
| Dimensions (W x H x D) | 140 mm x 21 mm x 80 mm |
| Weight | 0.31 kg (TX) / 0.30 kg (RX) |
See manufacturer website for specific product warranty information.
