Williams AV Infinium Auracast Assisted Hearing System Kit With 2 Receivers
Williams AV Infinium Auracast Assisted Hearing System Kit With 2 Receivers
Couldn't load pickup availability
SKU:WI-BASYS1
Infinium Auracast System Kit: Williams AV's Groundbreaking Broadcast Audio Accessibility
The Williams AV Infinium Auracast System Kit (BA-SY1) revolutionises accessibility in commercial audio-visual environments, offering a sophisticated, modular Bluetooth Auracast solution for assistive listening and real-time audio distribution. Designed to meet the stringent requirements of modern, inclusive venues, this system guarantees low-latency, high-fidelity audio transmission to an unlimited number of Auracast-enabled devices, including dedicated Infinium receivers, hearing aids, cochlear implants, and standard Bluetooth Auracast headphones. It represents the perfect, ADA-compliant choice for facilities committed to superior audio performance and universal design.
Unrivalled Broadcast Performance and Technical Excellence
The Infinium system separates the Controller and the Transmitter for unparalleled flexibility and seamless AV integration. The professional, rack-mountable Infinium Controller boasts both analogue and Dante inputs, ensuring effortless compatibility and simplified audio routing within complex, modern AV networks. Configuration, monitoring, and troubleshooting are managed in real-time via the intuitive front panel or a comprehensive web interface. The associated Low-Profile Transmitter delivers robust, omnidirectional audio with a substantial coverage range of up to 100 metres. Its simplified deployment is a key feature for system integrators, requiring only a single CAT 5e cable connection that also provides Power over Ethernet (PoE).

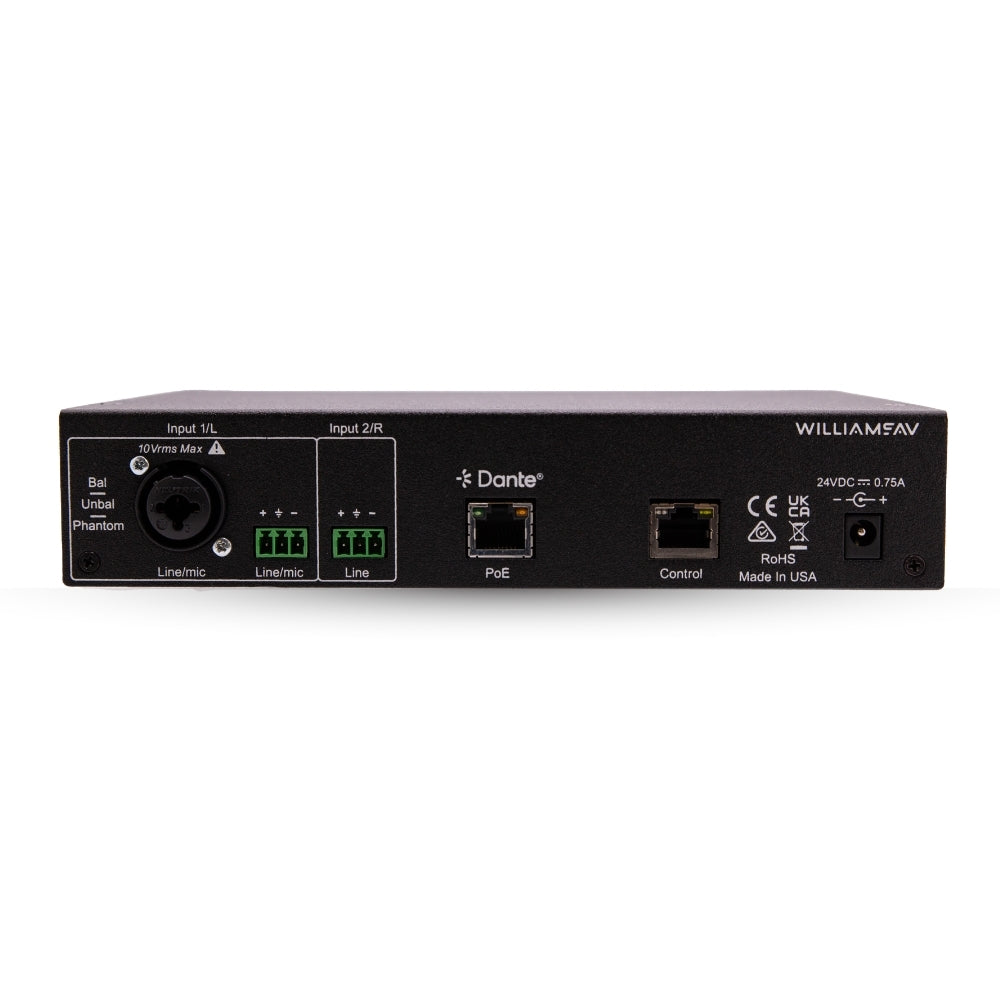

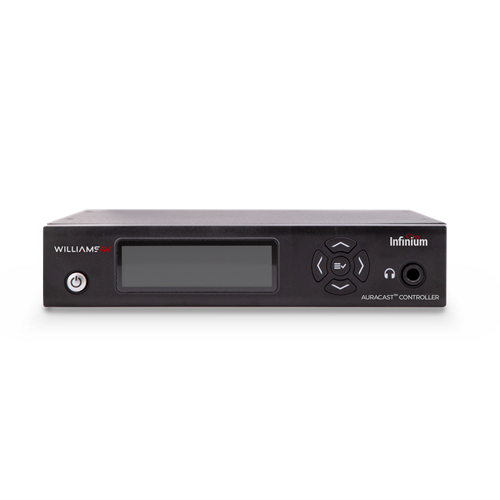

The Controller Specifications include a dedicated Dante RJ-45 jack and an Ethernet Control Port (RJ-45, 10/100 Base-T) used for web UI and programming. The unit is equipped with a 3.12-inch High Resolution OLED Direct Entry UI for immediate status monitoring and programming. It is standard 19-inch rack mountable, occupying one EIA rack space high, or suitable for shelf placement. Power input is via a Desktop Style Transformer (100-240 VAC) providing 24 VDC, 750 mA.

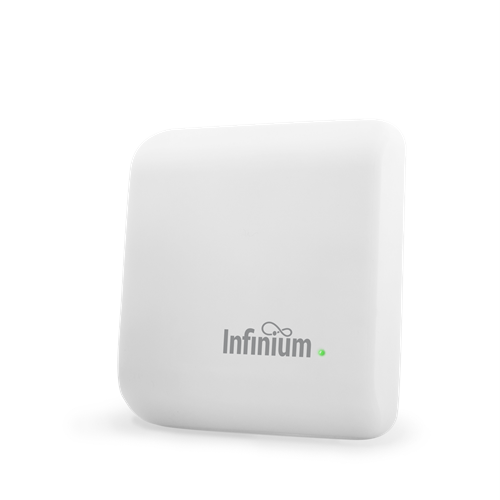

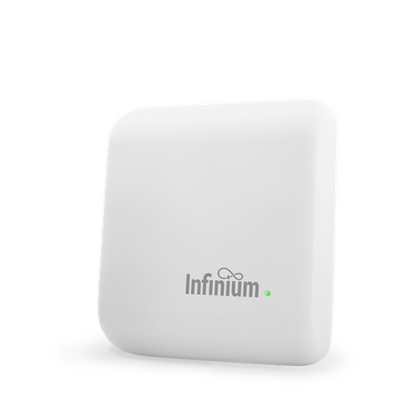

The Transmitter Specifications detail that it is powered via PoE Input. It features a compact and discreet design at 11.9 cm W x 12.7 cm D x 3 cm H, weighing just 0.18 kg. It is designed for versatile ceiling, wall, or shelf mounting configurations.
The Premium Infinium Receiver Experience
The kit includes two state-of-the-art Infinium R1 Receivers, engineered for exceptional user comfort and functionality. The receivers feature the largest screen in their class—a high-visibility 1.54-inch diagonal OLED display—providing clear channel and status information. Users benefit from intuitive adjustable balance control, allowing for tailored listening preferences that enhance speech intelligibility.
Receiver (R1) Specifications outline that the unit is powered by a field-replaceable Lithium Ion (Li-ion) 1200 mAh camera-style rechargeable battery, delivering an impressive battery life of over 20 hours. Charging is flexible, supporting dual-contact drop-in charging or modern USB-C charging (5V @ 500 mA). The unit has a standard 3.5 mm stereo jack for compatibility with wired headphones, earphones, or neckloops. It includes integrated physical controls for Power, Increment, Decrement, Channel/Balance (CH/BAL), and Menu/Select, all within an ergonomic, portable design of 99 mm x 63 mm x 21.6 mm.
Detailed Technical Specifications:
| Dimensions | 8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 21 cm x 4.4 cm) |
| Weight | 2.3 lbs (1.04 kg) |
| Color | Black |
| Installation Configurations |
Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits Shelf: Can sit on shelf, table, podium, etc. |
| Temperature Range – Operating | +32° F to +122° F (0° C to 50° C) |
| Temperature Range – Storage | -4° F to +158° F (-20° C to 70° C) |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power Button | Push On/Push Off latching power button. |
| Ethernet Control Port | (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T |
| Front Panel Display | 3.12” High Resolution OLED Direct Entry UI with button entry programming and status indicator selections. |
| Dante | (1x) RJ-45 jack. |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| PoE Power Out | PoE |
| Compliance Approvals | FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme |
| Warranty | 2-year parts and labor |
Transmitter
| Dimensions | 4.7″ W x 5.0″ D x 1.19″H (11.9 cm x 12.7 cm x 3 cm) |
| Weight | 0.4 lbs (0.18 kg) |
| Color | White |
| Installation Configurations | Ceiling Mount, Wall Mount, Shelf |
| Temperature Range – Operating |
+32° F to +122° F (0° C to 50° C) |
| Temperature Range – Storage | -4° F to +158° F (-20° C to 70° C) |
| Power | PoE (Input) |
| Connection | RJ45 (1x) with audio, control and PoE |
| Power ON Indicator | Programmable LED |
| Transmitter Power Output | Programmable |
| Compliance Approvals | FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan) |
| Warranty | 2-year parts and labor |
Cable
| Ethernet Cable | 10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant |
Receiver
| Dimensions | 3.9″ x 2.48″ x 0.85″ 99 x 63 x 21.6 mm |
| Dimensions with Belt Clip | 3.9″ x 2.48″ x 1.19″ 99 x 63 x 30.2 mm |
| Weight | 3.8 oz (107.7 g) |
| Shipping Weight | 4.5 oz (127.6 g) |
| Color | Black |
| Battery Type | Lithium Ion (Li-ion) Camera Style Rechargeable Battery; Field Replaceable |
| Battery Size | 3.7 Vdc, 1200 mAh |
| Battery Life | > 20 hours |
| Temperature Range – Operating | +14° F to +104° F (-10° C to 40° C) |
| Temperature Range – Storage | -4° F to +122° F (-20° C to +50° C) |
| Temperature Range – Charging | +41° F to +114° F (+5° C to 40° C) |
| Charging Connections | Dual contacts for use with Infinium Drop In Chargers or USB-C Connector |
| Button Controls | Power, Increment, Decrement, CH/BAL, Menu/Select |
| Display | OLED display 1.38 x o.69 in (35.1 x 17.5 mm), Diagonal 1.54″ (39.2 mm) |
| Belt Clip | Removable |
| Audio Output Connector | 3.5 mm stereo jack for wired stereo or mono headphones, earphones or neckloops |
| Approvals | FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme |
| Warranty | 2-years parts and labor |
| USB-C Connection | Power/Charge (5V @~500 mA) Firmware Updates |
Your Complete System Kit Components

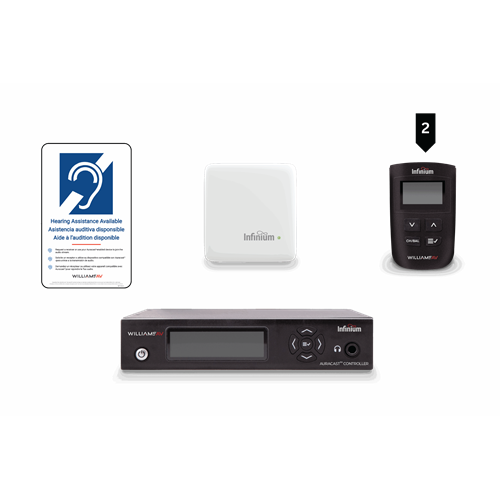

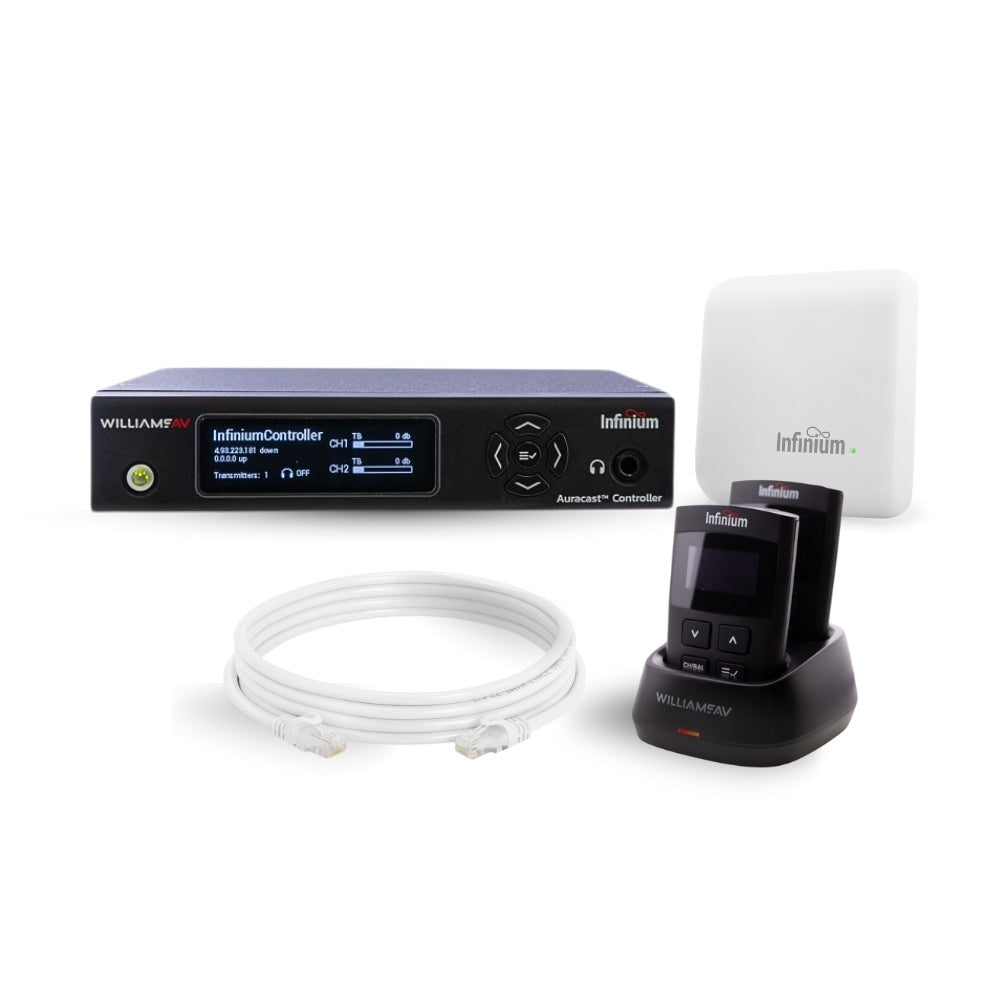

This comprehensive kit provides everything required for immediate deployment of an enterprise-grade assistive listening solution. The system includes: one BA CT1 Infinium Controller and Transmitter package, two BA R1 Infinium receivers, two HED 024 headphones, one CHG 003 two-bay charger, one IDP 018 Auracast® ADA wall plaque to clearly signpost compliance, a set of NKL 001s neckloops for hearing aid users, and one RPK 005 rack mount kit for professional installation of the controller.
