Logitech VC Room Solution: Rally Bar and Tap IP Video Conference System
Logitech VC Room Solution: Rally Bar and Tap IP Video Conference System
Couldn't load pickup availability
SKU:

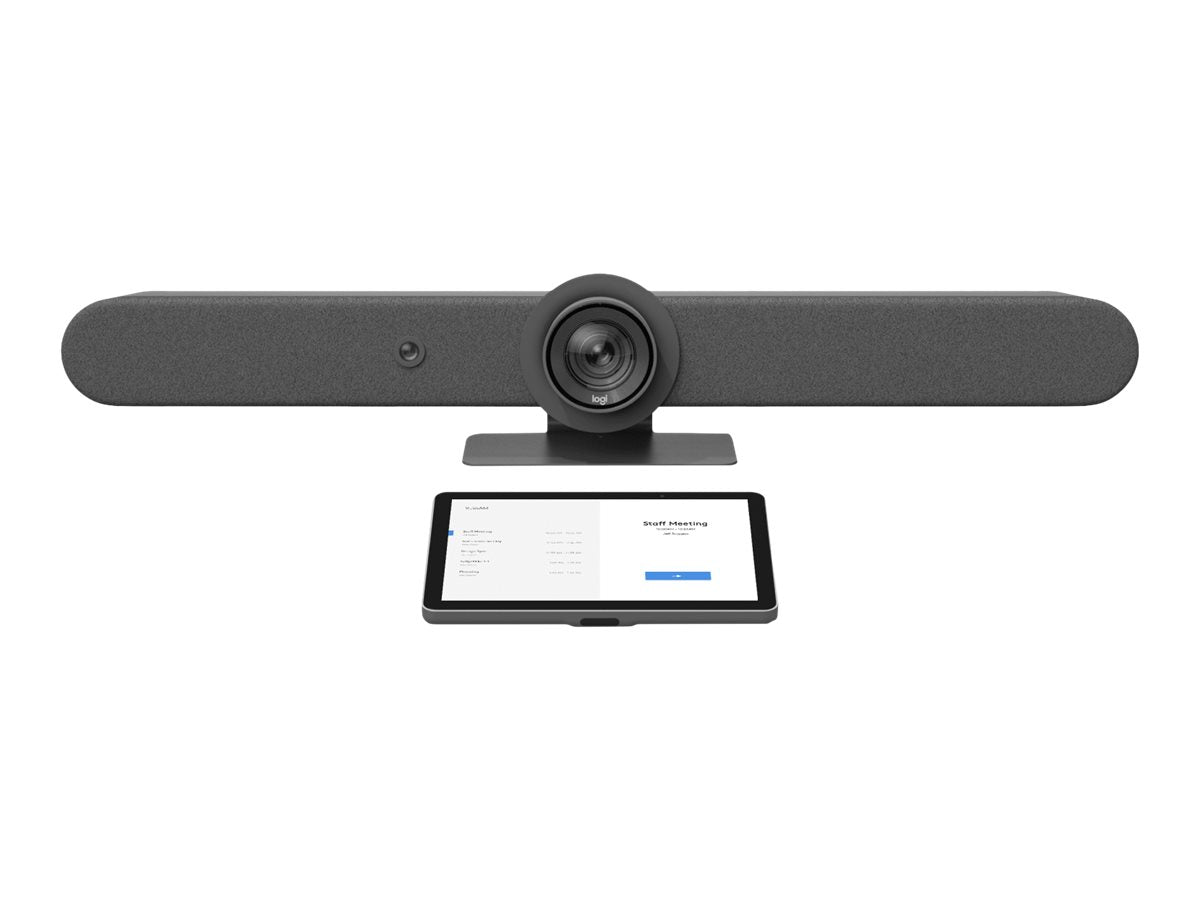

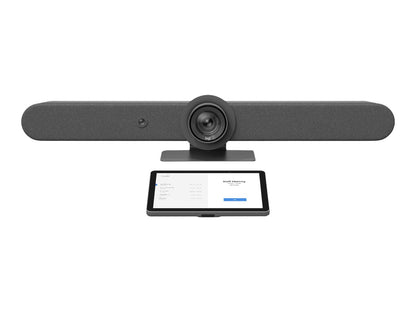

Logitech Room Solution: Rally Bar and Tap IP
The Logitech Rally Bar and Tap IP bundle is a professional all in one video conferencing solution designed for medium to large sized meeting rooms. This kit operates in Appliance Mode, allowing it to run major conferencing platforms directly on the hardware without requiring an external computer. It is fully certified for Microsoft Teams Rooms on Android, Zoom Rooms, and RingCentral, providing a streamlined and reliable user experience.

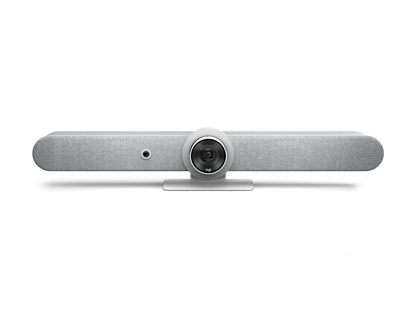

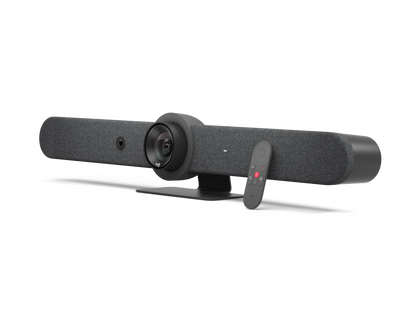

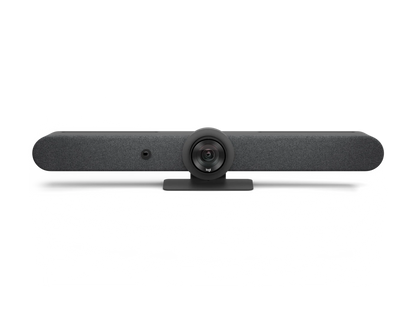

High Performance Audio and Video: Rally Bar
The Rally Bar features a dual camera system with a 4K Ultra HD main lens and a secondary AI Viewfinder. This second lens uses RightSight technology to continuously monitor the room and ensure all participants are perfectly framed. The audio system includes six beamforming microphones and high performance speakers with a vibration dampening suspension system, ensuring clear, natural sound for all attendees.

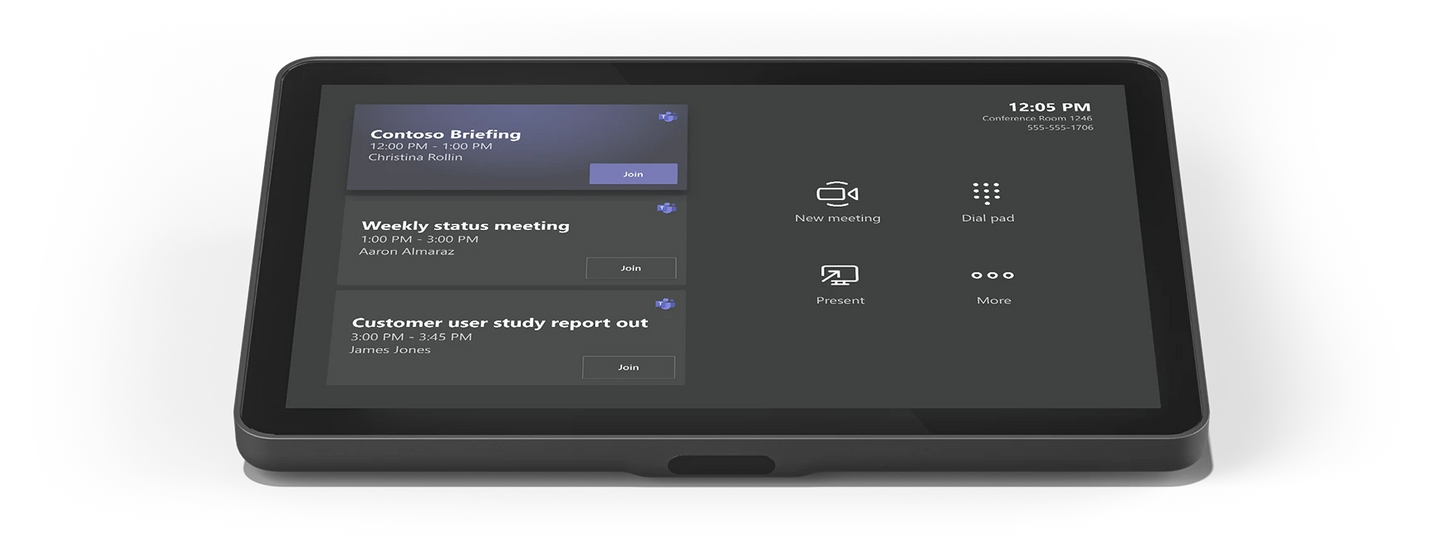

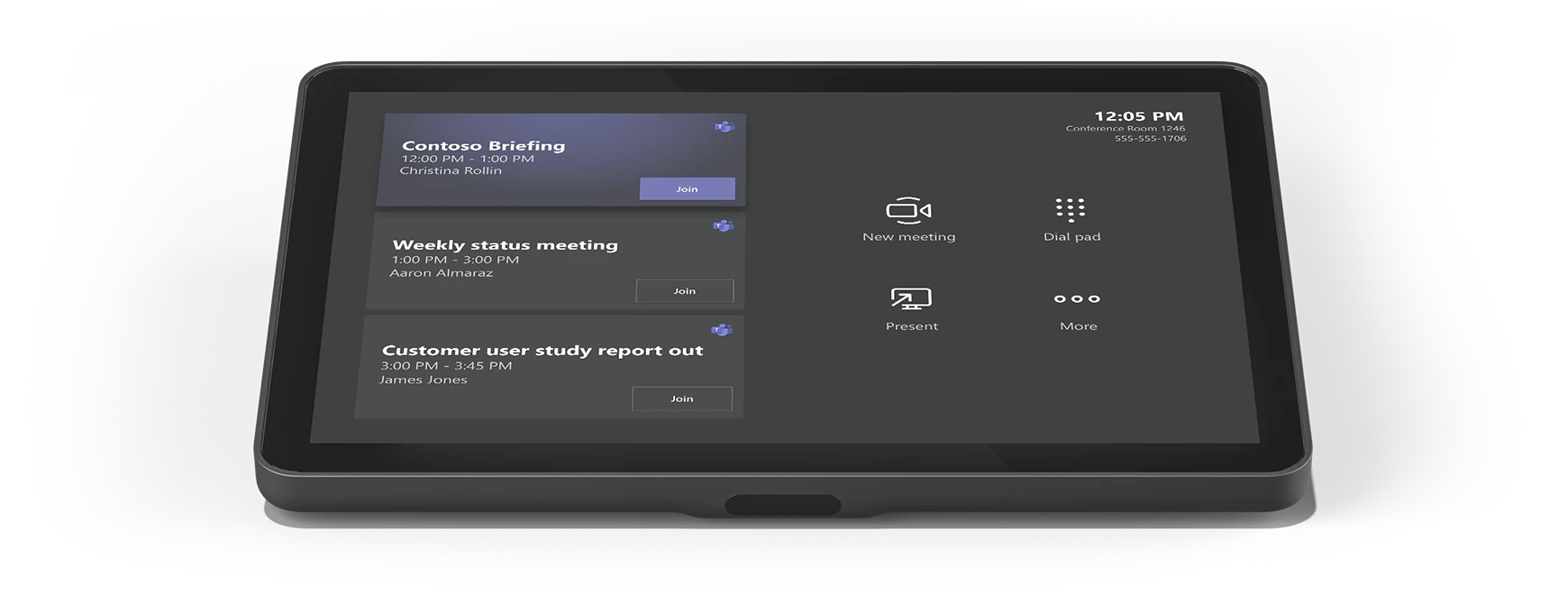

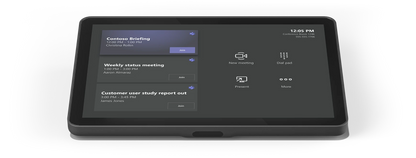

Simplified Control: Tap IP Touch Controller
The Logitech Tap IP is a 10.1 inch touch controller that facilitates one touch join capabilities for meetings. It connects to the network via Power over Ethernet (PoE), which simplifies installation by using a single cable for both power and data. The controller features a low profile design with a 14 degree angle for comfortable use on a conference table and includes an integrated motion sensor to ensure the system is always ready when someone enters the room.
Certifications & Compatibility
For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
Microsoft Teams Rooms on Android 1For medium sized rooms
Microsoft Teams Rooms on Windows 2For medium sized rooms
General Specifications
Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2
Display Resolution: Up to 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Rally Bar No-Radio: All radio frequency technology and connectivity such as Wi-Fi and Bluetooth has been removed from this model.
Camera
Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical and 3X digital)
Diagonal Field of View: 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2°
Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
Drivers: 2x 70 mm
Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Rated Power: 8W
THD: 1kHz < 2% at 1W
Speaker Sampling Rate: 48 kHz
Impedance: 4 Ohms
Microphones
Frequency Response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48KHz
Pickup Range: Up to 7 m
Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI based de-noising algorithm
Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
RightLight: Renders natural skin tones for each participant
RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
HDMI Out: 2 (up to 1080p)
HDMI In: 1
USB: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac (Rally Bar No-Radio does not support WiFi connectivity)
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy (Rally Bar No-Radio does not have a remote control and/or support Bluetooth)
Power & Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127 mm x 51 mm x 30 mm
DC Cable: 1.5 m
AC Cable: 1 m
HDMI 1.4 Cable: 2 m
USB A to USB C 3.0 Cable: 2.2 m
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting
Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Accessories
Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity: Logitech Strong USB (10m, 25m, 45m)
Touch Controller: Logitech Tap and Tap IP Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information
Technical Specification Data
| Feature | Detail |
| Video Resolution | 4K UHD 3840 x 2160 |
| Camera Zoom | 15X Total Zoom (5X Optical) |
| Microphone Range | 7 Metres |
| Connectivity | HDMI Out (x2) and Ethernet |
| Touch Display | 10.1 inch with PoE |
| Certification | Teams, Zoom, RingCentral |
| Operating System | Logitech CollabOS |
| Warranty | 2 Year |
See manufacture website for warranty details.
