LD Systems ZONE 622 2-Zone Mixer

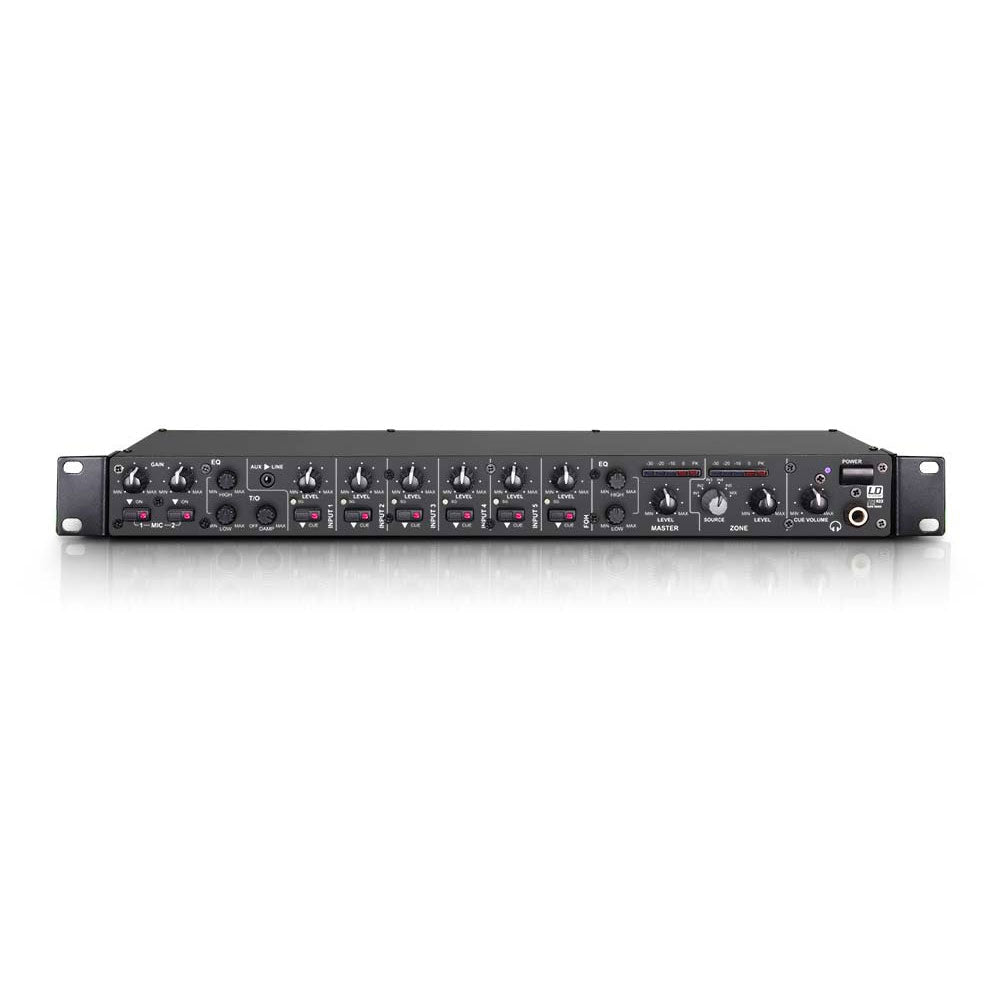

The ZONE 622 is a particularly compact 1U zone mixer with 6 line and 2 microphone channels, that can be assigned to a stereo or a mono master output. The device has all the essential functions, an input for an external emergency announcement system with its own volume control, and a connection to the remote-controlled switching mute. The ZONE 622 is suitable as a sound system for separate zones in restaurants, clubs, hotels, fitness centres, and for presentations.

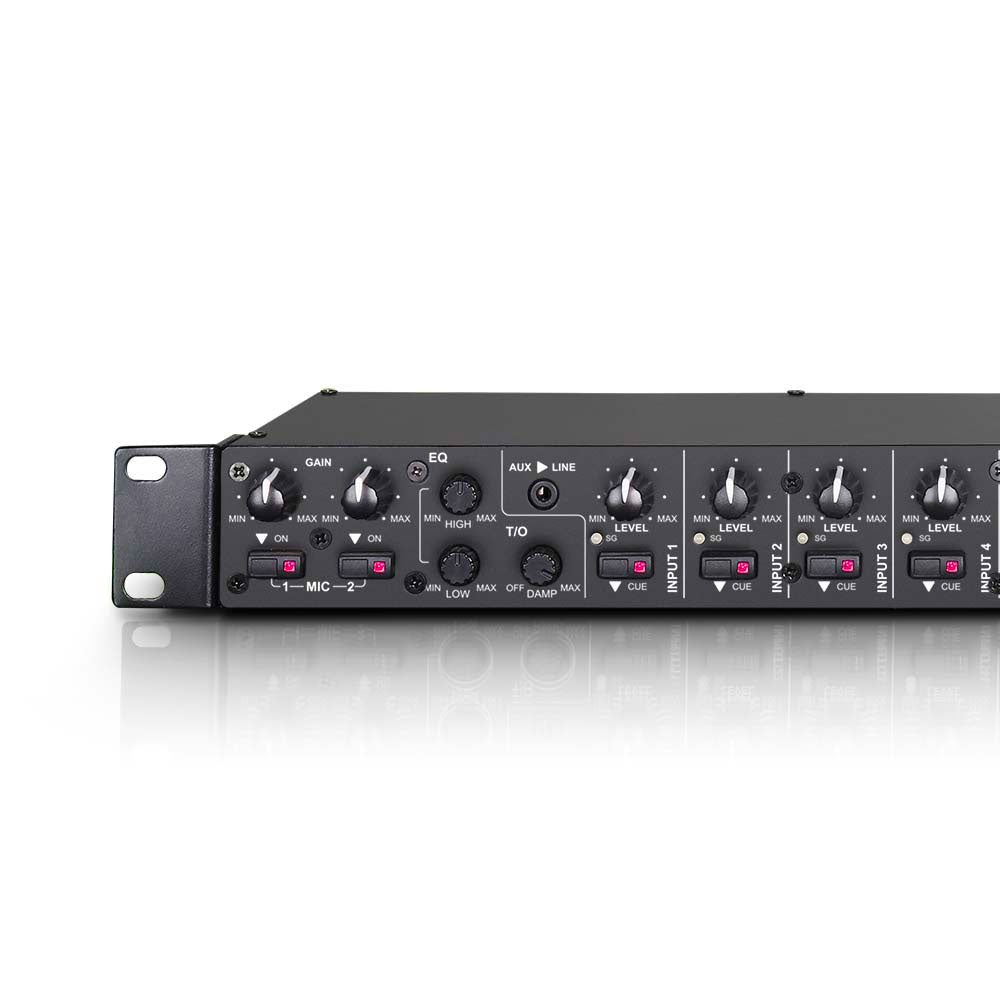

The two balanced microphone channels with stereo jack inputs are equipped with controls for Gain, Talkover volume, Talkover attenuation, 12V phantom power and a shared 2-band EQ. The line channels 1 and 2 can also be used to connect unbalanced microphones, and channel 6 is specially designed for balanced FOH signals. The stereo input channels of the ZONE 622 have a Cue button and volume control signal display, and the channels 1-5 have an additional gain trimmer. Furthermore, the zone mixer has a 3.5 mm mini jack input and a USB port , that is used as a Stereo Input and Output (Recording Out). So you can use the ZONE 622 as an external audio interface.

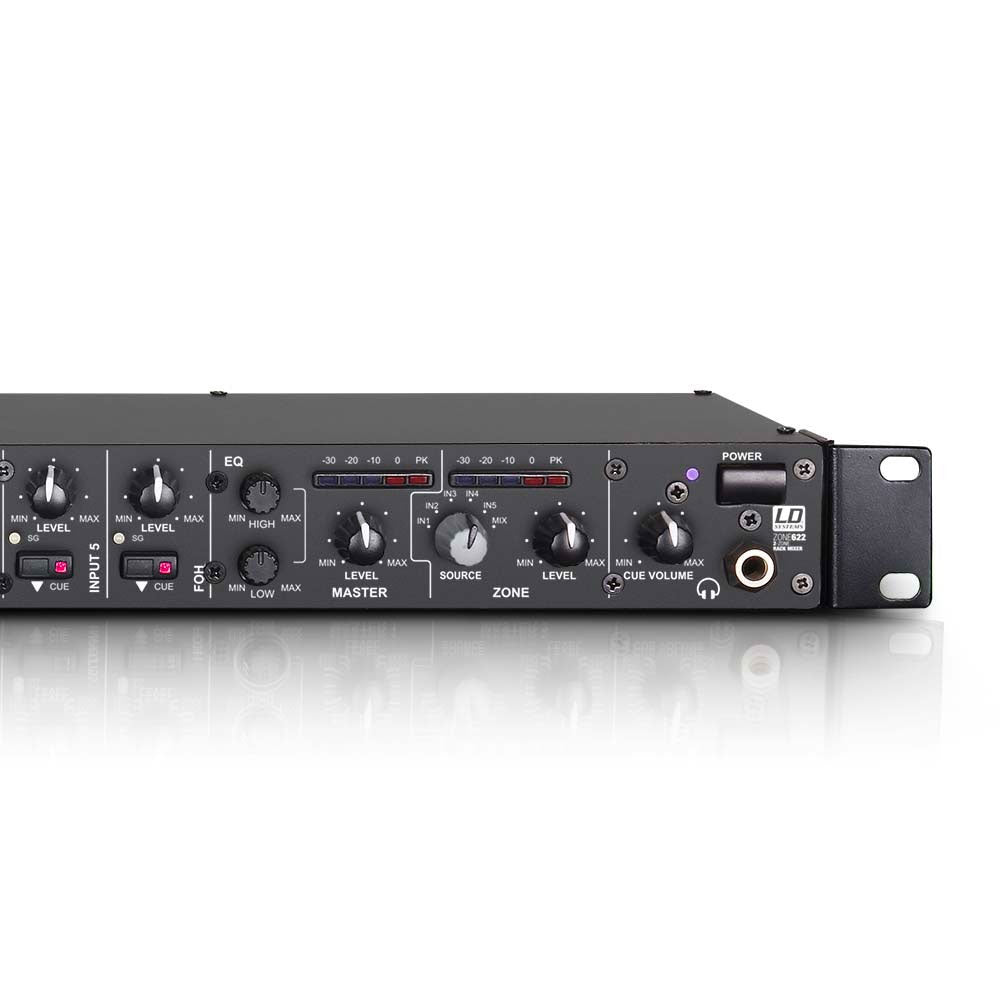

The stereo and mono output sections have their own meters, 2-band EQ, trimmer for adjusting the maximum output level, as well as electronically balanced jack plugs and terminal block connectors. In addition, the stereo section has unbalanced RCA jacks. An adjustable headphone jack for previewing and a recording output complete the equipment for the ZONE 622.
| Product type | Mixers |
| Type | Installations |
| Number of Zones | 2 (Master, Zone) |
| Type | stereo |
| Installation Height | 1 U |
| Total Input Channels | 8 (2x Mic, 2x Mic/Line, 3x Line, 1x FOH) |
| Frequency response | 20 - 40000 |
| Microphone channels | 2 (with phantom power 12 V) |
| Microphone Channel Connections | 6.3 mm stereo jack (balanced) |
| Microphone channel controls | 1 x EQ Hi, 1 x EQ Low, 1 x Talk Over Damp, 1 x Talk Over Level, Gain, On / Off |
| Microphone Channels Display Elements | On-LED |
| Microphone Channels Input Impedance | 4 kOhm |
| Microphone Channels Input Sensitivity | 6.1 mV |
| Microphone Channels THD | 0.08% |
| Line / Microphone Channels | 2 |
| Line / microphone input connectors | 2 x RCA, 3.5 mm stereo jack (input 1), 6.3 mm stereo jack (balanced) |
| Line / microphone channel controls | Cue, level, mic/lline, Trim |
| Line / Microphone Display Elements | Cue-LED, Signa-LED |
| Line Channels | 3 |
| Line input connectors | Input 3-4: 2 x RCA, Input 5: 2 x RCA + USB |
| Line Channel Controls | Cue, level, Trim |
| Line Channel Display Elements | Cue-LED, Signa-LED |
| Line Channel Input Impedance | 4 kOhm |
| Line Channels Input Sensitivity | 1.5 V |
| Line Channels THD | 0.03% |
| input sensitivity AUX/Line | 3 V |
| FOH Channels | 1 |
| FOH Input Connections | 6.3 mm stereo jack (2 x balanced) |
| FOH Input Controls | Cue, level |
| FOH Input Display Elements | Cue-LED, Signa-LED |
| Line outputs | 3 (Master - Stereo, Zone - Mono, Rec - Stereo) |
| Output Connectors Master | 6.3 mm stereo jack (2 x balanced), RCA (x2), Terminal block |
| Master Controls | EQ Hi, EQ Low, level, Max. Level |
| Master Display Elements | 5-Segment Level Meter |
| Master Output Levels | (balanced) 24 dBu, (unbalanced) 18 dBu |
| Zone Output Connections | 6.3 mm stereo jack (balanced), Terminal block |
| Zone Controls | EQ Hi, EQ Low, level, Max. Level, Source Input 1-5/Mix |
| Zone Display Elements | 5-Segment Level Meter |
| Zone Output Levels | 24 (balanced/ unbalanced) dBu |
| Output Connections Rec | 2 x RCA |
| Headphones ouput | 1 |
| Headphone Out Port | 6.3 mm TRS |
| Headphone Output Controls | Cue Volume |
| Headphone Output Voltage | (@ 32 Ohm) 1.25 V |
| Additional Inputs | 2 (Emergency Input, Output Mute) |
| Connections Additional Inputs | Terminal block |
| Additional Input Controls | Level Emergency Input |
| Additional Controls | power switch |
| Additional Display Elements | Power-LED |
| Operating voltage | 220 - 250 V AC, 50 Hz |
| Mains connector | IEC power connector |
| Power consumption | 18 W |
| Fuse | T 500 mAL / 250 V |
| Width | 485 mm |
| Height | 44 mm |
| Depth | 179 mm |
| Weight | 2,4 kg |
| Accessories (included) | Power cord, terminal blocks |
