Kordz Pro3 HDMI 4K60 Cable
Kordz Pro3 HDMI 4K60 Cable
Couldn't load pickup availability
SKU:K26016-0100-CH
Kordz PRO³ Passive HDMI Cable
Unrivalled Performance Engineered for the Professional Integrator
The Kordz PRO³ Passive 18Gbps HDMI Cable is the essential connectivity solution for high-stakes professional AV environments. Masterfully designed for the integrator, this cable combines rock-solid reliability with an electronics-free, streamlined physical design, guaranteeing a stress-free installation experience and immediate performance. It is meticulously engineered to maintain the highest signal integrity over every length, ensuring your projects are built with 'Connectivity Assured'.
Superior Digital Video and Audio Transmission
The PRO³ series is built to handle the future of high-definition content with uncompromised bandwidth. This cable is a Certified High Speed with Ethernet HDMI cable, validated for up to 18Gbps transmission rates across all lengths up to 9 metres.
It fully supports critical HDMI 2.0 features, including stunning 4K Ultra HD at 60Hz with rich 4:4:4 chroma subsampling. Experience expanded contrast and vibrant colour depth with full support for High Dynamic Range (HDR). Audio fidelity is equally paramount, with the cable supporting Enhanced Audio Return Channel (eARC) functionality, capable of handling 32 audio channels and formats such as Dolby Atmos and DTS:X, delivering immersive, cinema-quality sound.
| Video and Data Capabilities | Audio and Control Specifications |
| Certified Data Rate: 17.82Gbps aggregate | Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos |
| Max Data Rate (TMDS): Up to 18.2Gbps | Max Audio Channels: Up to 32 channels |
| Video Resolution: Up to 8K (7680 x 4320) or 10K (10240 x 4320) | Auxiliary Features: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet Channel, ARC, eARC, HDR |
| Video Refresh Rate: Up to 240 frames per second | Audio Sample Rate/Size: Up to 192KHz / 24 bits |
| Colour Depth: Up to 16 bits | Content Protection: Up to HDCP 2.2 supported |
Designed for Durability and Ease of Installation
Every element of the PRO³ cable is optimised to maximise installation uptime and physical durability. The flexible, UL CMG fire-rated PVC composite jacket allows the cable to be easily routed in tight spaces and meet stringent fire safety standards for in-wall applications.

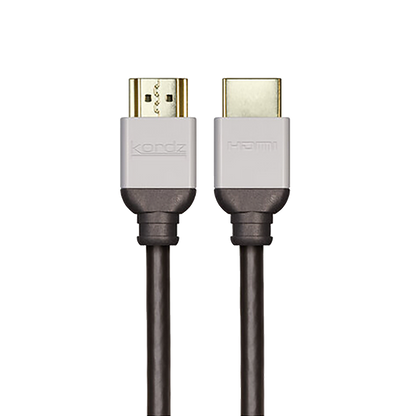

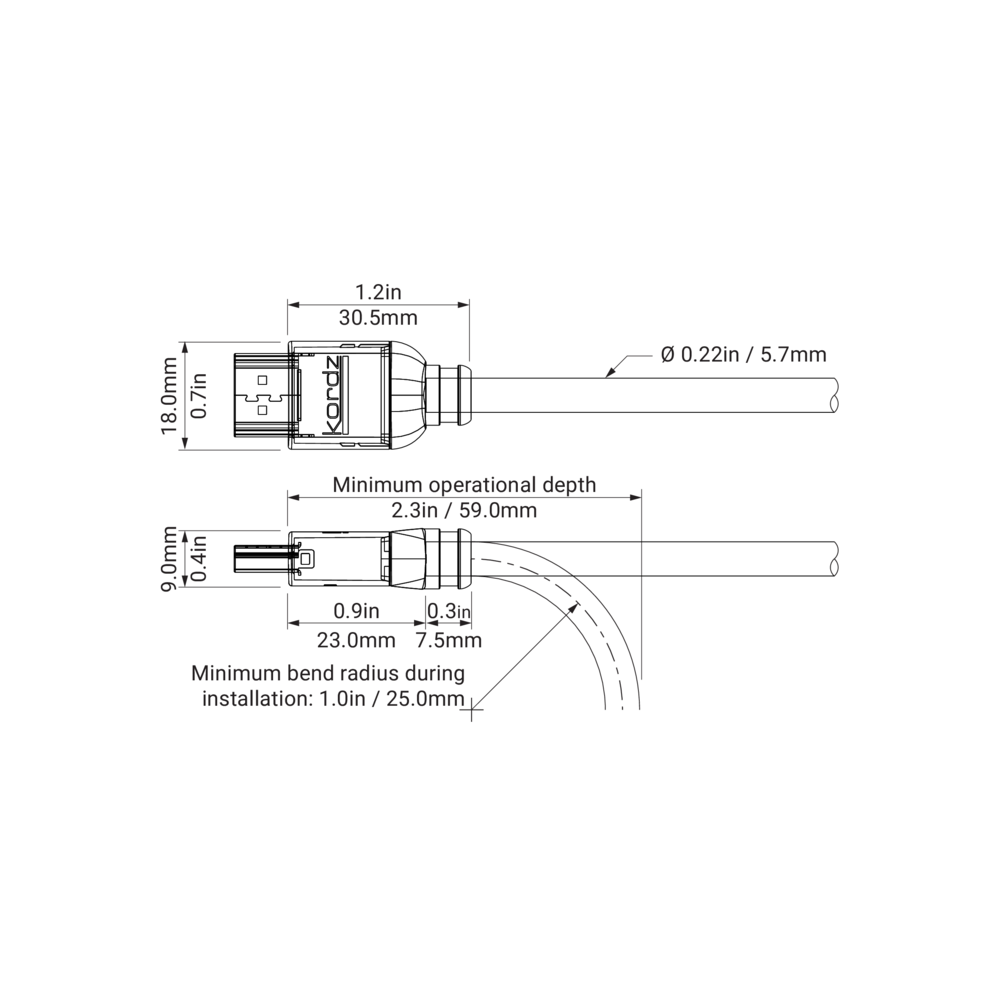

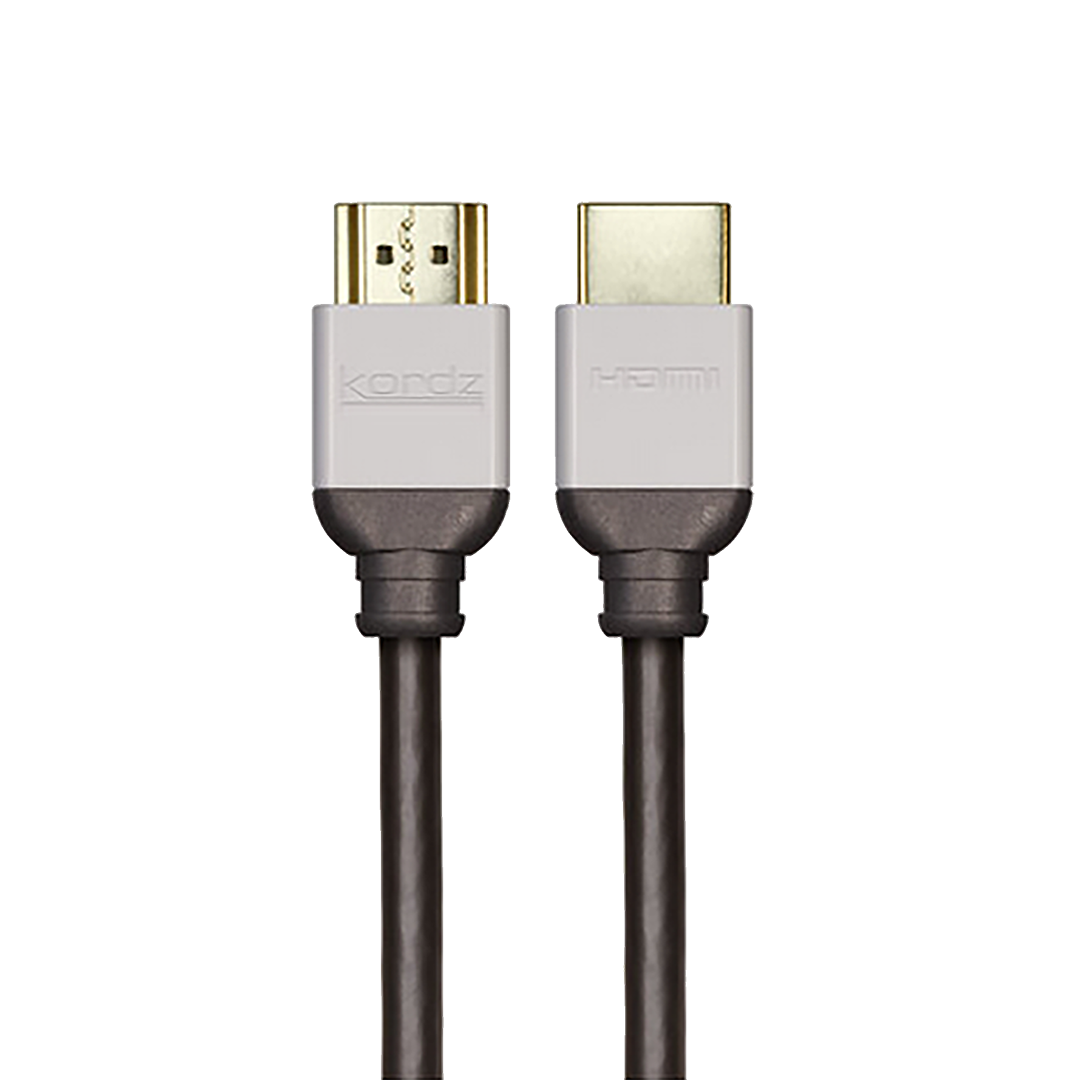

The connector assembly features a highly compact, environmentally friendly lightweight ABS shell, which has a 65% reduced footprint compared to the previous iteration. This significantly aids in connecting to slim-profile displays and devices.
The proprietary connector design ensures a secure and reliable physical link. It incorporates gold-plated premium gauge folded steel shells and solid OFC copper pins with 15μ” 24K gold plating to prevent oxidation and ensure stable signal transmission. A nominal retention force of 9.9N (1kg or 2.2lbs) ensures the connector stays firmly in place, reducing call-backs due to accidental disconnections.
Precision Construction and Material Science
The superior performance of the PRO³ cable is achieved through meticulous construction processes and quality materials.
Conductor and Shielding System
The cable features Solid Oxygen-Free Copper (OFC) primary conductors, ranging from 30AWG to 24AWG depending on the length, ensuring optimal signal delivery over distance. Signal integrity is safeguarded by multiple layers of shielding. The critical TMDS pairs feature 125% coverage of Al/Mylar shielding, and the overall cable incorporates 100% Al/Mylar shielding complemented by an Al-Mg alloy braid with a minimum of 85% coverage. This robust shielding package provides superior resistance to electromagnetic and radio frequency interference (EMI/RFI).
Patented Termination
Benchmark inter-terminal uniformity is ensured through Kordz’s patented high-frequency soldering techniques, which eliminate signal inconsistencies commonly found in conventionally terminated cables. Every single cable is individually tested on the assembly line to guarantee performance straight out of the box.
