Bose
Bose FreeSpace IZA 2120-LZ 8ohm Amplifier
Bose FreeSpace IZA 2120-LZ 8ohm Amplifier
Couldn't load pickup availability
SKU:
FreeSpace IZA 2120-LZ: Seamless Integration and Intelligent Low-Impedance Zone Amplification
The Bose FreeSpace IZA 2120-LZ integrated zone amplifier is a high-performance solution engineered to elevate the audio experience in commercial settings requiring low-impedance (4Ω to 8Ω) amplification. Perfectly optimised for use with FreeSpace loudspeakers, this Class-D amplifier delivers reliable power, intuitive control, and advanced digital signal processing (DSP) in a compact unit. It is the definitive choice for background/foreground music and paging applications in retail stores, hospitality venues, conference centres, and auxiliary zones.
Precision Digital Signal Processing (DSP)
The IZA 2120-LZ provides an enriched audio experience through embedded technologies that automatically manage sound quality and clarity. Opti-Voice Paging intelligently equalises the vocal frequency range, ensuring exceptional speech intelligibility during announcements while guaranteeing seamless transitions back to background music. Dynamic EQ automatically adjusts the frequency response to maintain a full and balanced music presentation at any volume level, eliminating the thin sound often heard at low volumes. Furthermore, Simplified Loudspeaker Equalisation offers independent Loudspeaker EQ per output, simplifying connectivity and enriching audio quality when paired with Bose Professional loudspeakers, including FreeSpace 3 systems, FS3 subwoofer, FS2, FS4, and DesignMax DM2.
Robust Amplification and Flexible Connectivity
This amplifier features reliable Class-D architecture, providing 2 channels of robust power rated at 120 W per channel into 4Ω and 60 W per channel into 8Ω. The unit is designed to handle complex zone configurations with its comprehensive input structure, eliminating the need for bulky external mixers in many applications.

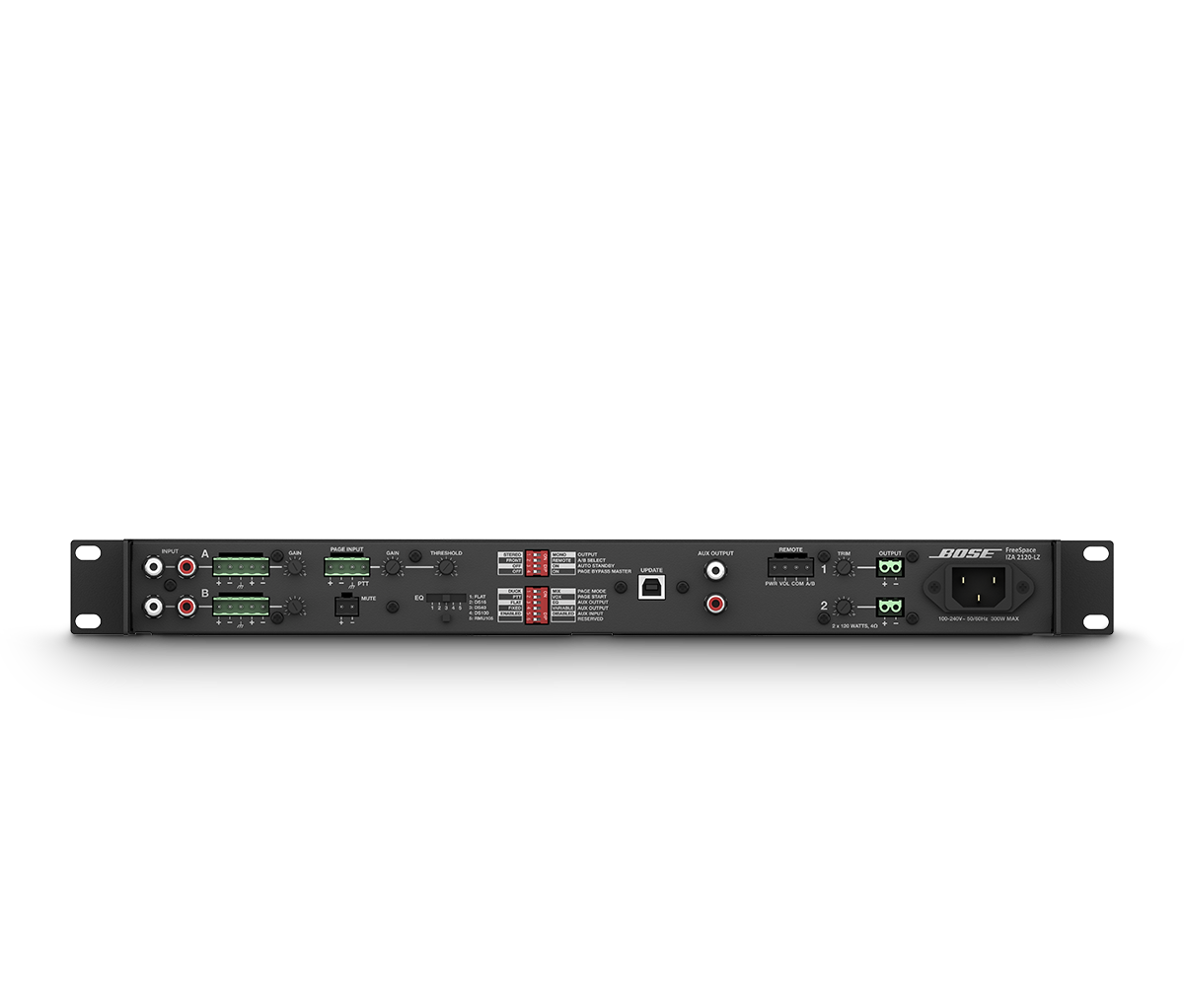

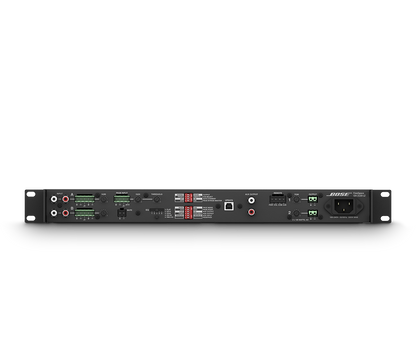

The IZA 2120-LZ offers four distinct input groups: two unbalanced stereo line inputs (RCA), two balanced line inputs (Euroblock), one balanced mic/line page input (Euroblock), and one unbalanced auxiliary stereo line input via a convenient 3.5 mm connector on the front panel for quick connection to mobile sources. Rear-panel DIP switches allow the amplifier to be configured without a PC for output (Mono/Stereo), remote control, paging modes, and automatic standby options.
Intuitive Installation and End-User Control
Designed for simplicity from installation through to daily operation, the IZA 2120-LZ provides installers with intuitive feature setup and flexible placement options. The unit’s compact and lightweight design is supplied with rack ears for seamless integration into 1RU rack spaces, or can be placed discreetly on a desk or counter using the included plastic feet.

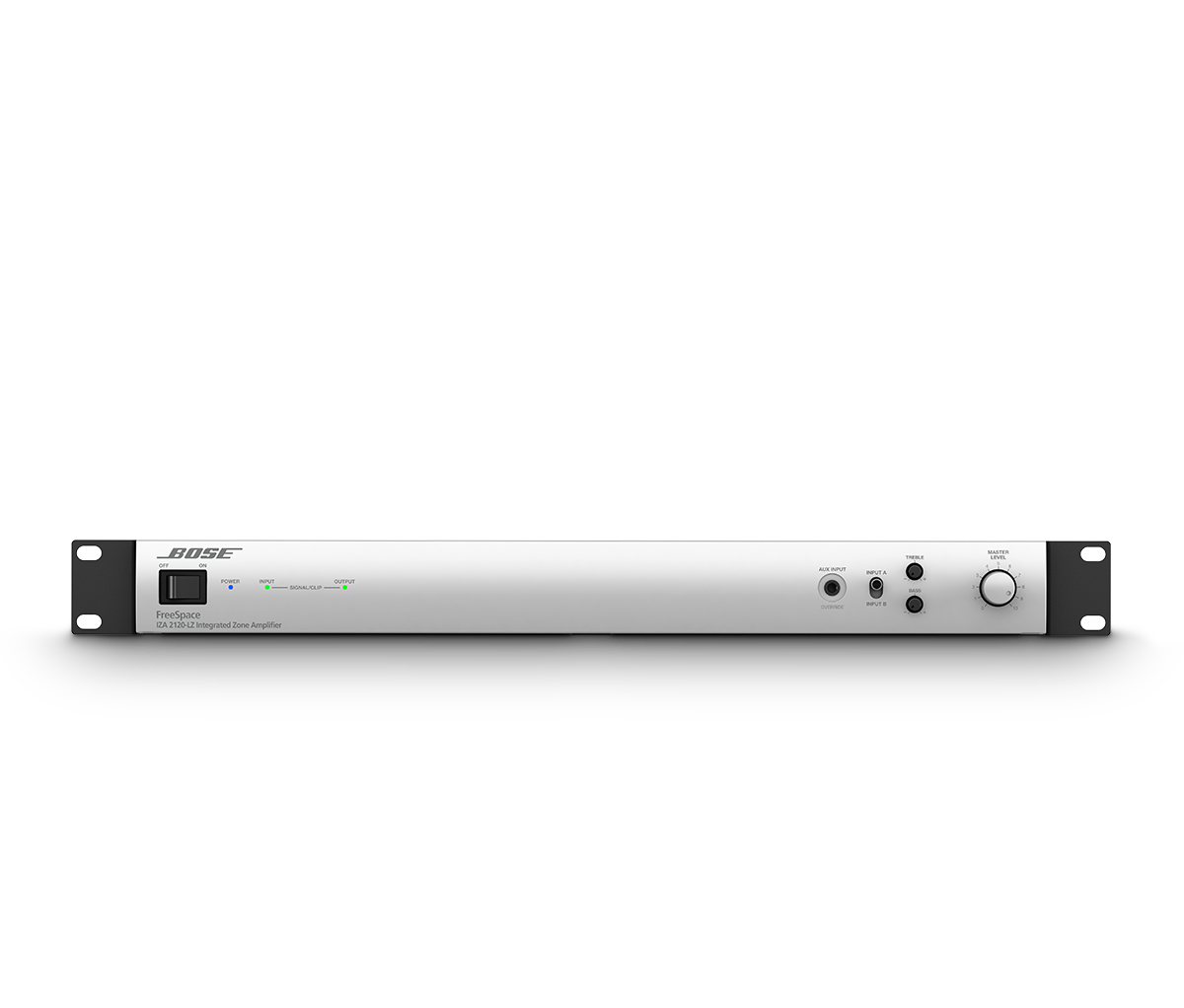

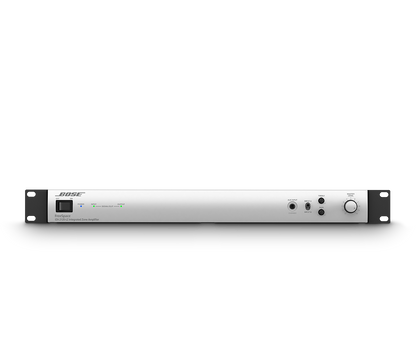

For end-users, the simplified front panel interface provides direct access to source selection, master volume, and tone controls. The system also supports dual optional remote controls (PC 041967) for independent or combined zone volume and source selection from remote locations, which completely bypasses the need for traditional, sound-degrading in-line volume controls. Additionally, remote muting can be activated via a centralised control system through a simple contact closure.
Comprehensive Technical Specification Data
| Feature | Detail |
| Amplifier Performance | |
| Power Rating (Per Channel) | 120 W @ 4 Ω; 60 W @ 8 Ω |
| Continuous Power (Per Channel) | 40 W @ 4 Ω; 20 W @ 8 Ω |
| Frequency Response | 20 Hz – 20 kHz (+0/-3 dB) |
| Total Harmonic Distortion + Noise (THD+N) | ≤ 0.5% (at rated power) |
| Dynamic Range | 88 dB |
| Power Class | Class D |
| Connectivity & Signal | |
| Number of Channels | 2 |
| Total Analog Inputs | 6 (2 unbalanced line, 2 balanced line, 1 balanced mic/line, 1 unbalanced aux) |
| Paging Input Type | Balanced Mic/Line (4-pin Euroblock) |
| Auxiliary Input | 3.5 mm TRS (Front Panel) |
| Physical | |
| Dimensions | Compact, includes rack ears for 1RU mounting |
| Colour | Black |
| Auto-Standby | Selectable feature for energy optimisation |
| Product Code (AU 240V) | 719782-2420 |
