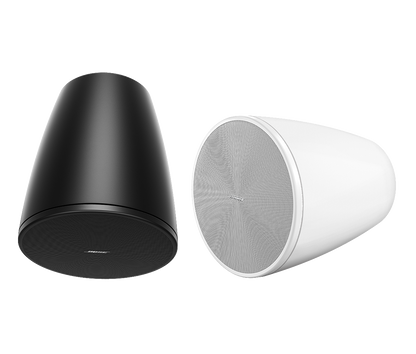

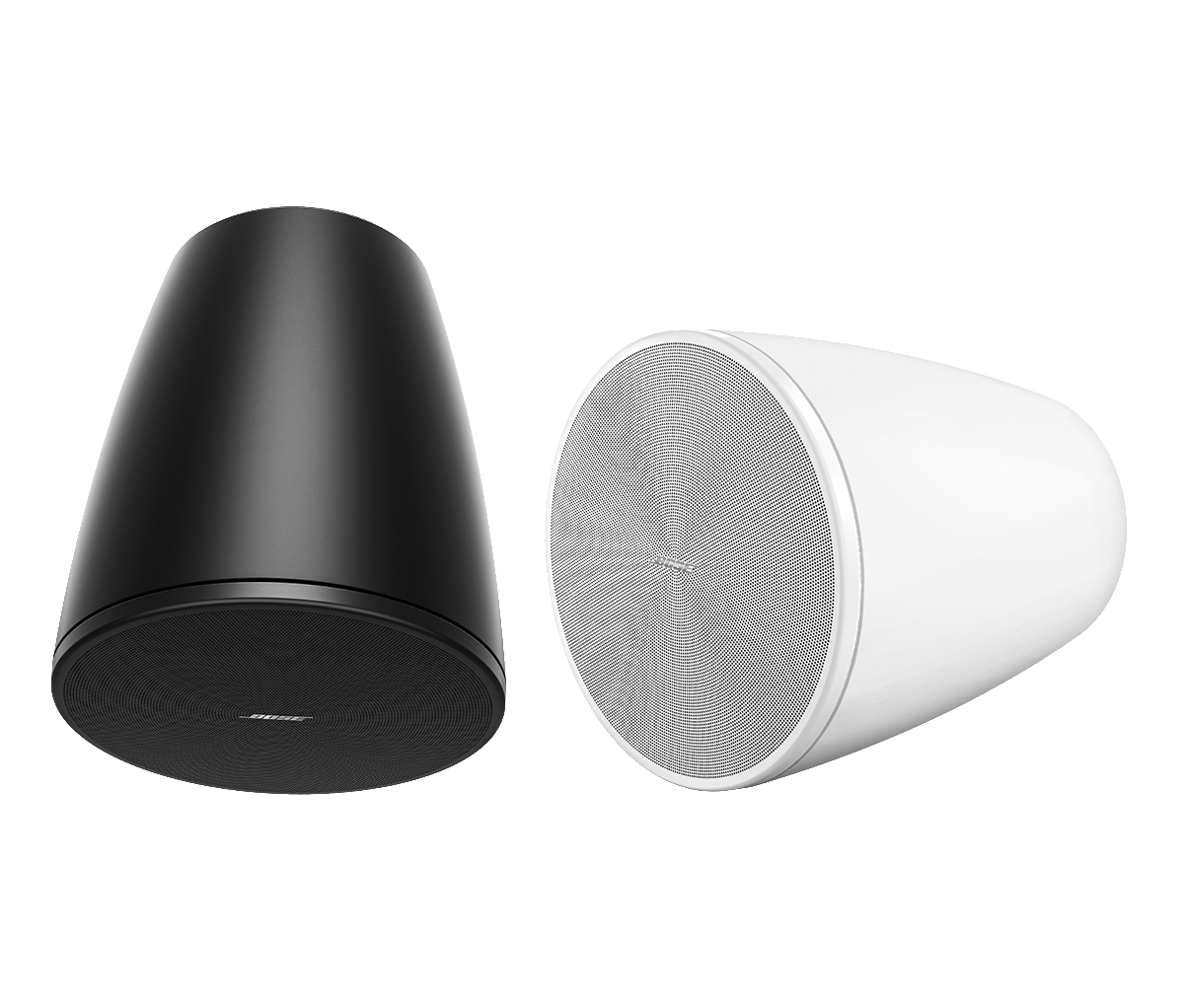

Bose DesignMax DM6PE Premium Pendant Speakers (PAIR)
Bose DesignMax DM6PE Premium Pendant Speakers (PAIR)
Couldn't load pickup availability
SKU:
Bose DesignMax DM6PE: Premium Weather-Rated Pendant Loudspeakers
Supplied as a pair.
The Bose DesignMax DM6PE loudspeaker delivers rich, detailed audio and superior aesthetics for complex open-ceiling commercial environments, including those exposed to the elements. With a high-performance coaxial two-way design and a peak power handling of 400 W, this 125-watt pendant loudspeaker provides rich lows and clear, intelligible highs suitable for retail, hospitality, houses of worship, and outdoor areas like covered patios. The sleek, modern form factor ensures premium aesthetics that complement any commercial design.
Superior Coaxial Acoustics and Wide Coverage
The DM6PE is acoustically engineered for powerful, consistent sound quality. It features a robust 165 mm (6.5-inch) woofer and a coaxially mounted, weather-treated 32 mm (1.25-inch) neodymium dome tweeter. This configuration utilises the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the tweeter, ensuring a consistent listening experience throughout the room. The loudspeaker delivers an extended frequency range from 62 Hz – 20,000 Hz (-10 dB) and a wide conical coverage pattern.
Flexible High-Output Performance and Seamless Installation
The DM6PE offers high-output performance without the immediate need for complex DSP. It provides a long-term continuous power handling of 100 W and can operate in both low-impedance (8 Ohm) and high-impedance 70V/100V systems. For line voltage applications, multiple taps are available up to 80 W (2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W for 70V; 5 W, 10 W, 20 W, 40 W, 80 W for 100V).

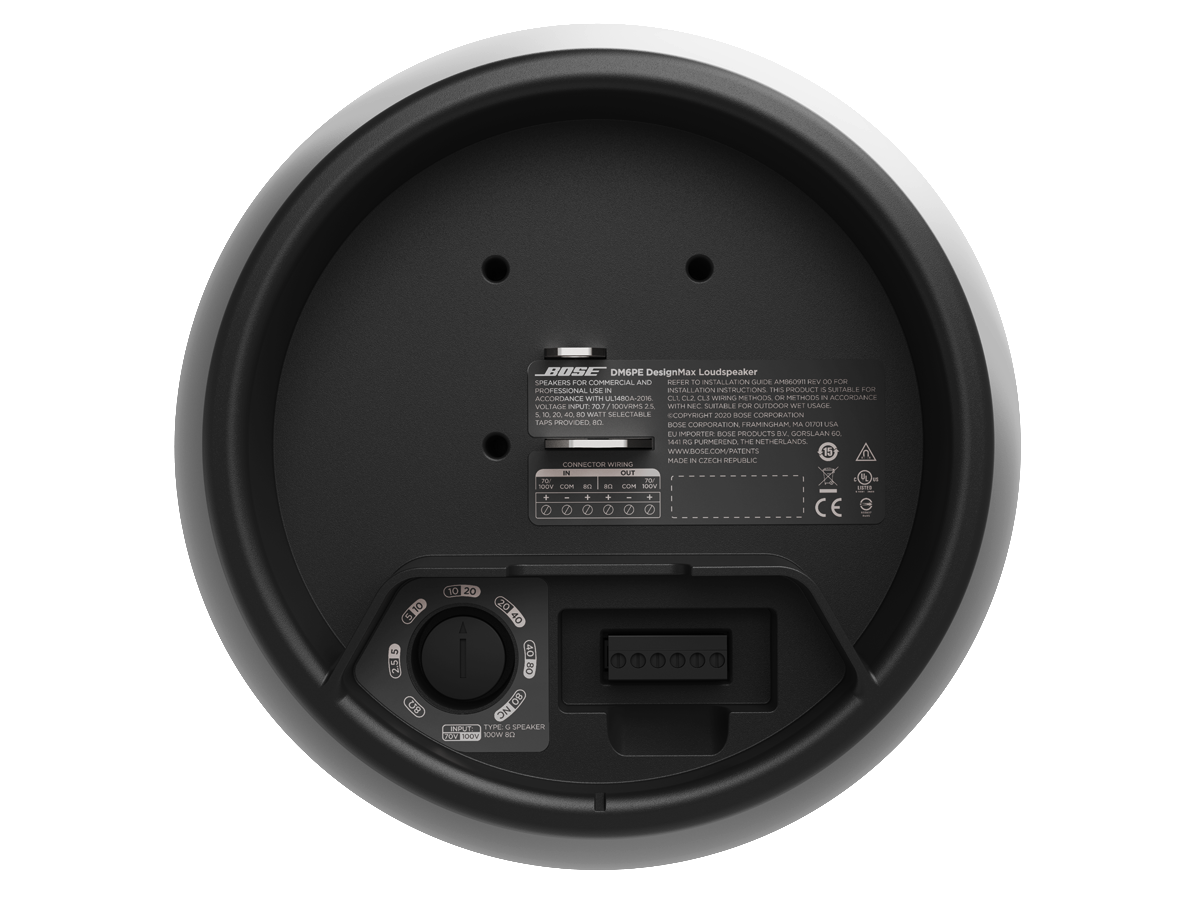

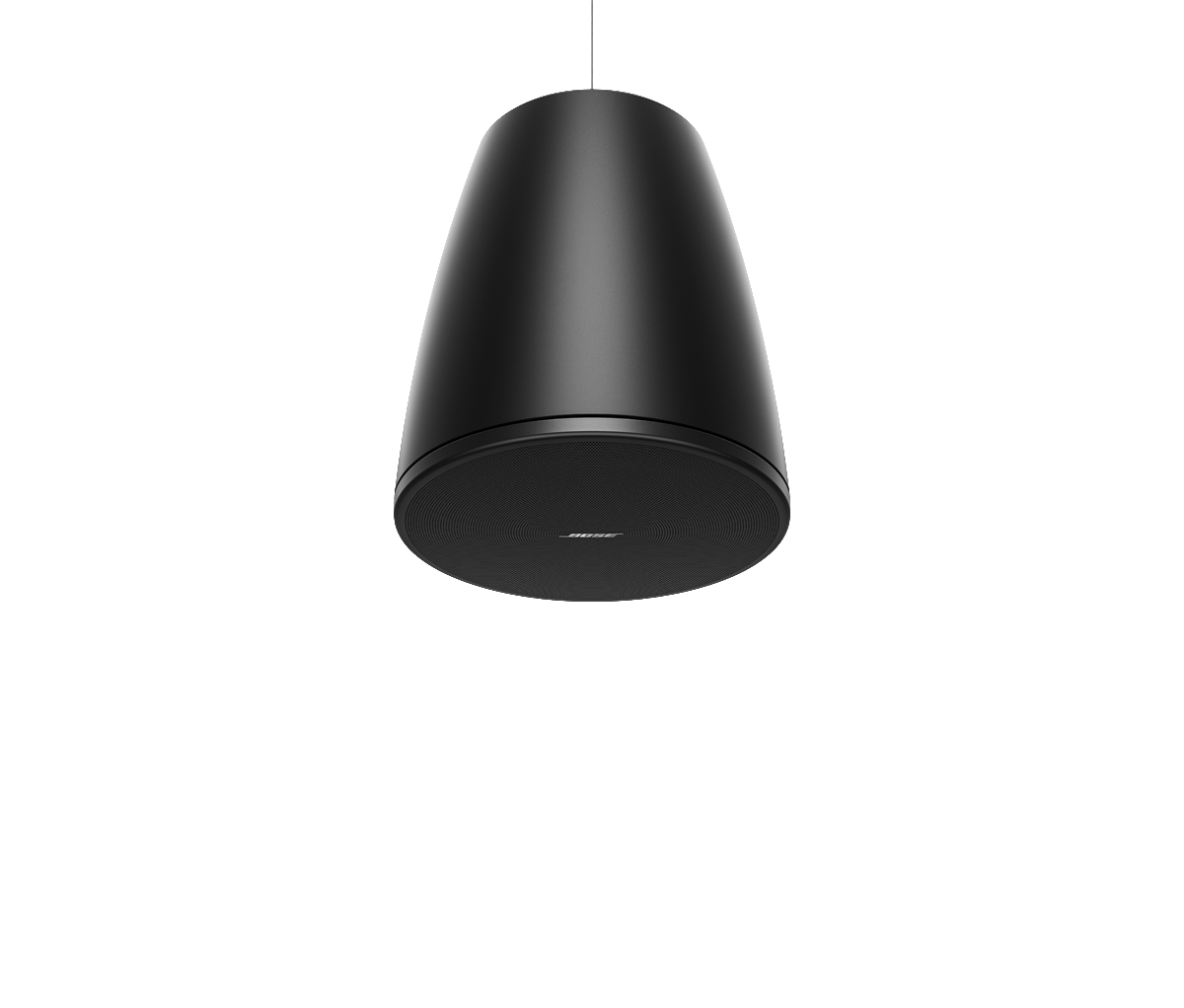

Installation is made simple with industry-standard Euroblock connectors and a streamlined, recessed single-point suspension system that ensures a sleek finish. The enclosure is available in paintable black or white colours (similar to RAL 9005 and 9003) with a removable, rotatable logo to easily blend with any décor.
Advanced Durability for Outdoor Environments
The DM6PE is built for reliability in challenging environments. It carries an IP55 outdoor rating for ingress protection, making it suitable for use in wet locations and outdoors. The construction includes a powder-coated steel grille and is highly UV fade-resistant for long-lasting aesthetics. Its robust design is capable of operating across a wide temperature range, from -25 °C to 65 °C (-13 °F to 149 °F).
Comprehensive Technical Specification Data
| Feature | Detail |
| Acoustic Performance | |
| Frequency Range (–10 dB) | 62 Hz – 20,000 Hz |
| Coverage (Conical) | 115° |
| Calculated Maximum SPL @ 1 m | 110 dB |
| Sensitivity (SPL/1 W @ 1 m) | 89 dB |
| Recommended High-Pass Filter | 60 Hz (recommended 24 dB/octave filter) |
| Transducers and Power | |
| Low-Frequency Driver | 1 × 165 mm (6.5 in) woofer, weather-treated |
| High-Frequency Driver | 1 × 32 mm (1.25 in) tweeter, weather-treated |
| Nominal Impedance | 8 Ohm (transformer bypass) |
| Power Handling (Continuous) | 100 W |
| Power Handling (Peak) | 400 W |
| Transformer Taps (70V) | 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass |
| Transformer Taps (100V) | 5 W, 10 W, 20 W, 40 W, 80 W, bypass |
| Physical and Environmental | |
| Product Dimensions (Diameter × Depth) | 308 mm × 375 mm (12.1 in × 14.8 in) |
| Net Weight (Single Loudspeaker) | 5.7 kg (12.5 lb) |
| Ingress Protection Rating | IP55 Outdoor-Rated |
| Operating Temperature Range | -25 °C to 65 °C (-13 °F to 149 °F) |
| Colours | Black, White (paintable) |
