Bosch

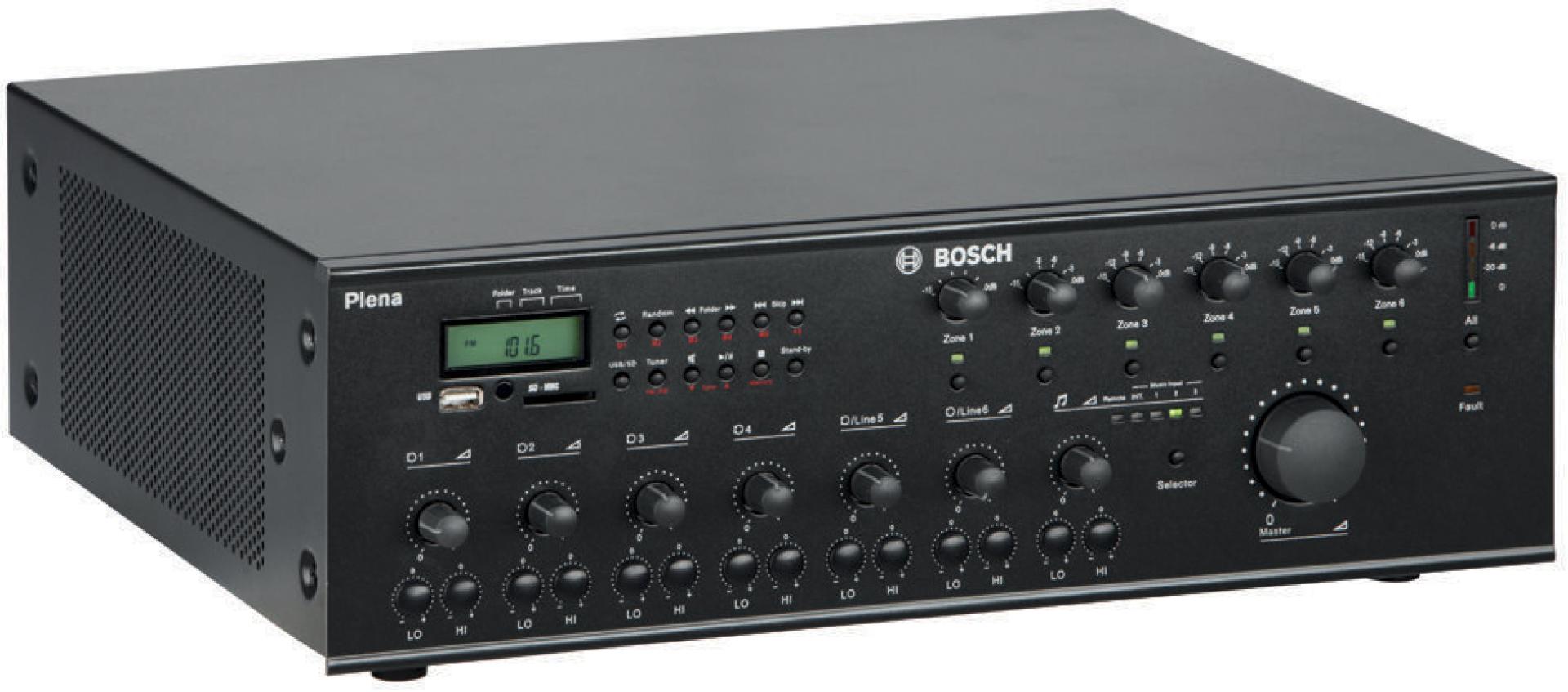

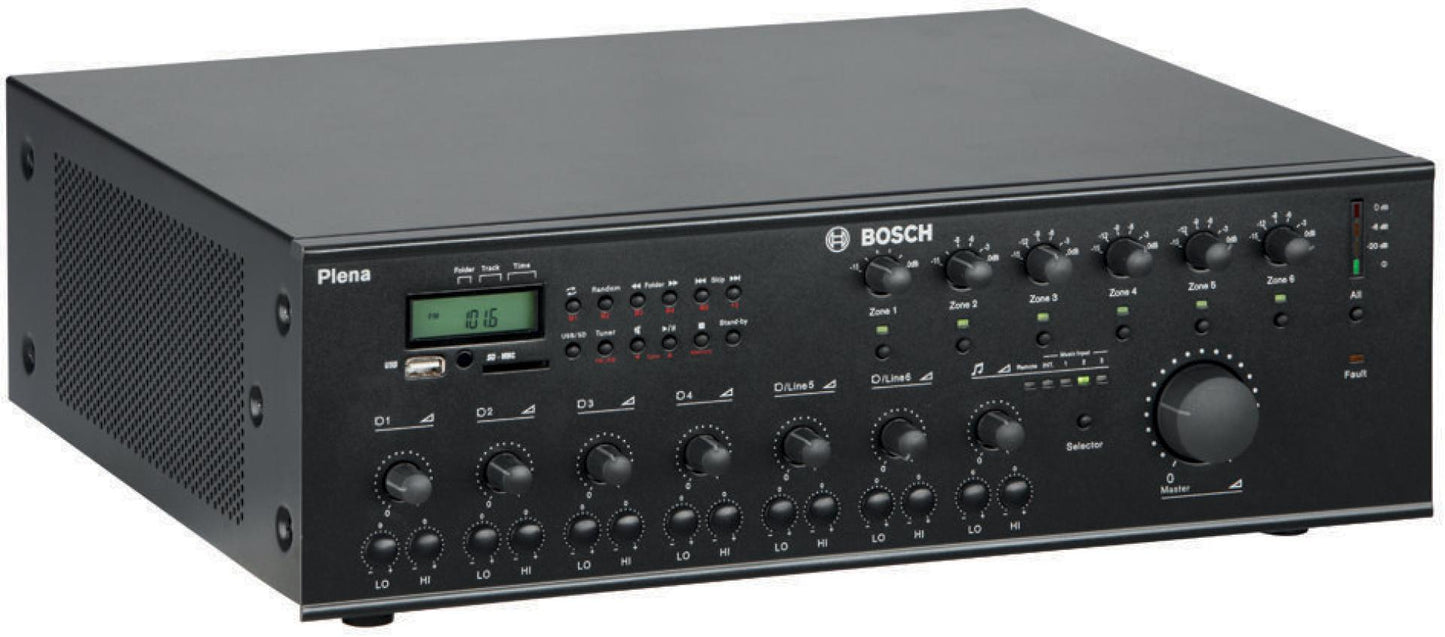

Bosch Six-Zone 240W Mixer Amplifier
Bosch Six-Zone 240W Mixer Amplifier
Couldn't load pickup availability
SKU:PLN-6AIO240
Bosch Six-Zone 240W Background Music and Paging System: Enhance Your Environment
Create the perfect atmosphere for your business with the Bosch Six-Zone 240W Background Music and Paging System.
This system is designed to provide seamless audio distribution and paging capabilities, ideal for a variety of commercial spaces including retail stores, restaurants, offices, and more.
Key Features:
- Six Independent Zones: Enjoy precise control over audio in six distinct areas. Play different music, make targeted announcements, or adjust volume levels independently in each zone.
- 240W Power Output: Delivers clear and consistent audio throughout your space, ensuring optimal sound quality even in larger environments.
- Versatile Input Options: Connect a range of audio sources, including CD players, MP3 players, tuners, and microphones, for flexible audio playback.
- Dedicated Paging Functionality: Make clear and audible announcements across all zones or selected zones with priority override, ensuring effective communication.
- Intuitive Zone Selection: Easily manage and control individual zones through a user-friendly interface.
- Bosch Reliability: Built with robust components and quality engineering, ensuring long-lasting and dependable performance.
- Expandability: The system is designed to be adaptable, allowing for future expansion to meet your evolving needs.
- Integrated Protection Circuits: Internal protection safeguards against overload and short circuits, ensuring system stability and longevity.
Benefits:
- Elevated Customer Experience: Create a welcoming and engaging atmosphere that enhances customer satisfaction.
- Improved Communication: Ensure clear and efficient communication across your facility with reliable paging capabilities.
- Flexible Audio Control: Tailor the audio experience to suit different areas and activities, providing optimal sound for every environment.
- Dependable Performance: Enjoy peace of mind with a system built to withstand the demands of commercial use.
- Enhanced Productivity: Create a positive and productive work environment with a well-designed audio solution.
Technical Specifications:
- Output Power: 240W
- Number of Zones: 6
- Input Impedance: Variable, depending on input.
- Frequency Response: 50 Hz to 20 kHz
- Protection: Short Circuit, Overload.
Detailed Specifications:
-
Amplifier:
- Output Power: 240W RMS
- Frequency Response:
- Microphone Inputs: 100 Hz – 15 kHz (+1/-3dB)
- Line Inputs: 50 Hz – 20 kHz (+1/-3dB)
- Distortion: less than 1% at rated output power, 1 kHz
- Bass control: +/- 8 dB @ 100 Hz
- Treble control: +/- 8 dB @ 10 kHz
-

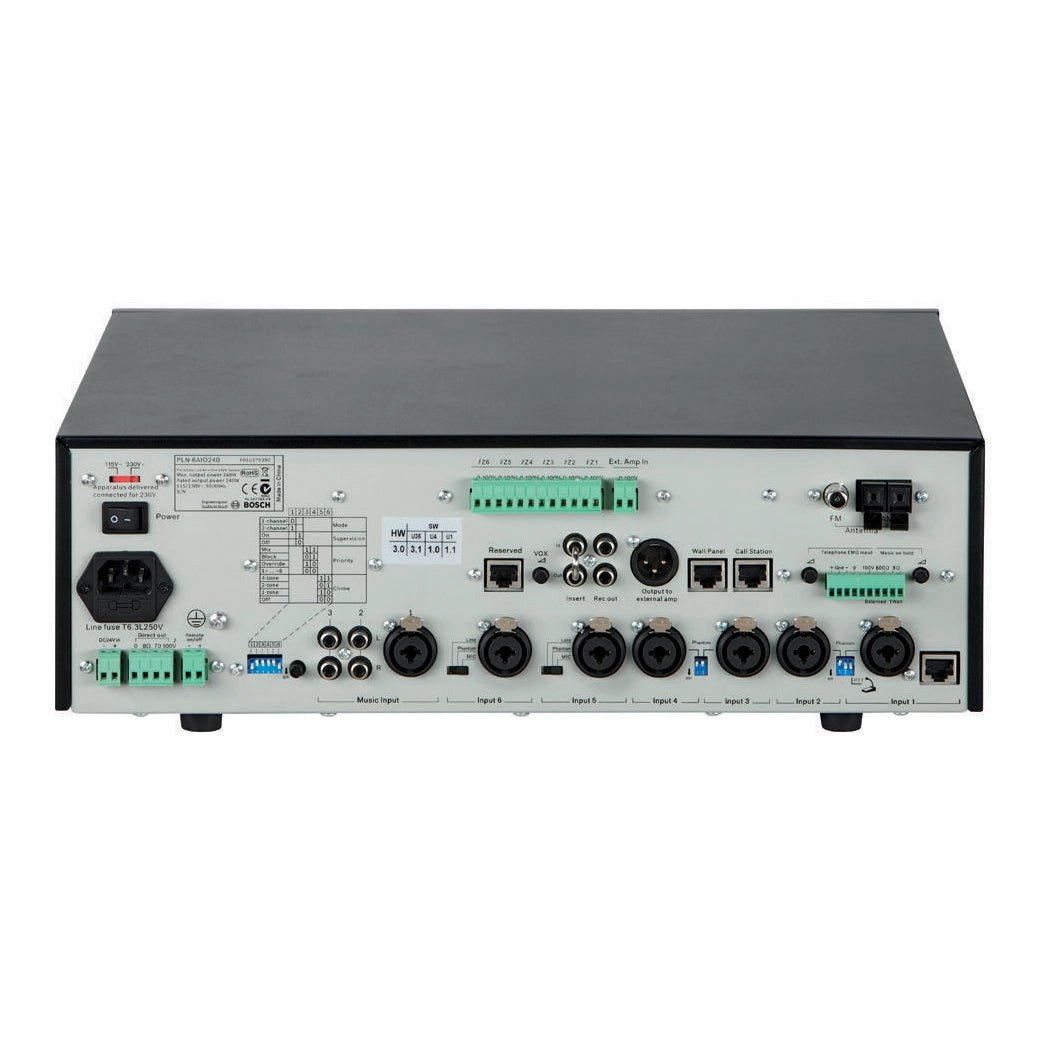

Inputs:
- Microphone/Line Inputs:
- Sensitivity: 1.5 mV (mic); 200 mV (line)
- Impedance: >600 ohm (mic); >10 kohm (line)
- Phantom power: 18V
- Microphone/Line Inputs:
-
Media Player:
- USB/SD card playback (MP3).
- Supports SD, SDHC, and MMC cards.
-
General:
- Power Consumption: 720W (max)
- Operating Temperature: -10°C to +45°C
- Dimensions (H x W x D): 133 x 430 x 365 mm
- Weight: 18 kg
- Voltage: 115/230 Vac +/- 15%, 50/60 Hz.
Applications:
- Retail Stores
- Restaurants and Cafes
- Offices
- Hotels and Resorts
- Educational Institutions
- Healthcare Facilities
- Warehouses and Distribution Centers
Invest in a professional audio solution that enhances your business environment. The Bosch Six-Zone 240W Background Music and Paging System delivers exceptional performance and reliability.
