AVer CAM570 Dual 4K Lens Audio Tracking Camera for Medium and Large Rooms
AVer CAM570 Dual 4K Lens Audio Tracking Camera for Medium and Large Rooms
Couldn't load pickup availability
SKU:
AVer CAM570: Dual 4K Lens Audio Tracking Camera for Medium and Large Rooms
The AVer CAM570 is a sophisticated 4K dual-lens camera system designed to deliver superior video conferencing in medium to large rooms. It seamlessly integrates a powerful PTZ (Pan-Tilt-Zoom) camera with an advanced AI lens and built-in audio sensor, enabling accurate speaker tracking, intelligent framing, and clear visibility of every attendee for truly effective hybrid meetings.
Dual-Lens Intelligence and Audio Tracking
The CAM570 features two complementary lenses. The primary camera is a high-performance PTZ optical zoom lens with a Sony 4K EXMOR image sensor, offering a massive 36X Total Zoom capability (12X optical; 3X digital). This camera captures crystal-clear video at 4K 30fps or 1080p 60fps. The secondary AI lens provides a 95° DFOV panoramic room view, constantly monitoring participants. This dual-lens design powers key intelligent features. The Audio Tracking capability is supported by a built-in audio sensor that detects human voices up to 10m away. The system automatically tracks and focuses on the active speaker, supporting both manual preset tracking and voice-triggered presentation tracking modes. Dynamic Detection is a feature where the secondary AI lens detects real-time motion. When a new participant enters the room, it triggers the primary PTZ camera to instantly re-frame all attendees, ensuring a seamless, inclusive collaboration experience. Smart Composition utilises AI algorithms to automatically frame every participant's face or body perfectly, displaying attendees in equal individual feeds for a clearer, engaging view of everyone in the room. This works with various Picture-in-Picture (PIP) layout options. Finally, Gesture Control allows users to intuitively turn on/off tracking and zoom in/out with touchless gestures, enhancing meeting hygiene and control ease.
Installation and Connectivity

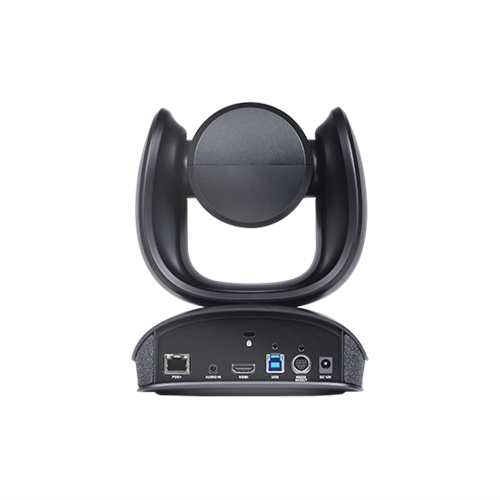

Designed for flexibility and high-quality integration, the CAM570 offers essential connectivity features. It supports simultaneous 3-way output via USB 3.1, HDMI, and IP (RJ45) connections. PoE+ (802.3at) capability allows for power and data transmission over a single cable, simplifying installation. The camera is highly configurable and supports control via IR remote control, RS-232, and VISCA over IP through a dedicated web user interface.
Comprehensive Technical Specification Data
| Feature | Detail |
| Camera System | Dual Lens (PTZ Optical Zoom + AI Lens) |
| Image Sensor | Sony 4K EXMOR |
| Resolution | 4K 30fps; 1080p 60fps (Maximum) |
| Total Zoom | 36X (12X Optical; 3X Digital) |
| PTZ Angles | Pan: +/- 170 degrees; Tilt: +90 degrees / -30 degrees |
| Preset Speed | 200 degrees/sec (Pan and Tilt) |
| AI Functions | SmartSpeaker (Audio Tracking), Dynamic Detection, Smart Gallery |
| Audio Pickup Range | 10 m (+/- 60 degrees) |
| Simultaneous Outputs | USB 3.1, HDMI, IP |
| Network Power | PoE+ (802.3at) |
| Dimensions (WxHxD) | 170.8 x 190.5 x 173 mm |
| Net Weight | 2.1 kg |
| Camera Warranty | 3 years |
