Autex Quietspace 3D Tile S-5.26: Wave Pattern Acoustic Wall Panel - Box of 6
Autex Quietspace 3D Tile S-5.26: Wave Pattern Acoustic Wall Panel - Box of 6
Couldn't load pickup availability
SKU:
Autex Quietspace 3D Tile S-5.26: Wave Pattern Acoustic Wall Panel
Per Box - Box includes 6 Panels
The Autex Quietspace 3D Tile S-5.26 is a premium, three-dimensional modular acoustic wall panel engineered to deliver highly effective sound control while serving as a contemporary design feature. Showcasing a distinctive Wave texture, the S-5.26 design uses a sculpted geometric profile to add architectural depth to interior spaces. This semi-rigid panel redefines sustainable space treatment, making it a staple selection for high-end commercial offices, educational facilities, home theatres, recording studios, and hospitality environments looking to control ambient noise.
Advanced Acoustic Performance and Material Construction
The primary engineering purpose of the S-5.26 Wave tile is the targeted reduction and control of reverberated noise and slap echo within building interiors. It delivers a substantial Noise Reduction Coefficient of 0.75, offering powerful sound absorption across the mid-to-high frequency spectrum. The hollow design of the molded tile creates a natural internal air gap between the panel face and the substrate, which mechanically improves its low-mid frequency performance compared to standard flat fabric linings.
The construction consists of 100 percent polyester fibre derived from polyethylene terephthalate, incorporating a minimum of 60 percent post-consumer recycled material. The resulting tile is entirely safe, non-toxic, non-allergenic, non-irritant, and resistant to fading. It holds a certified low-VOC rating, contributing to healthier indoor air quality metrics, and achieves a strict Group 1 fire rating under AS5637.1 and AS ISO9705 compliance standards, ensuring complete safety in high-occupancy public architecture.
Seamless Architectural Integration and Installation

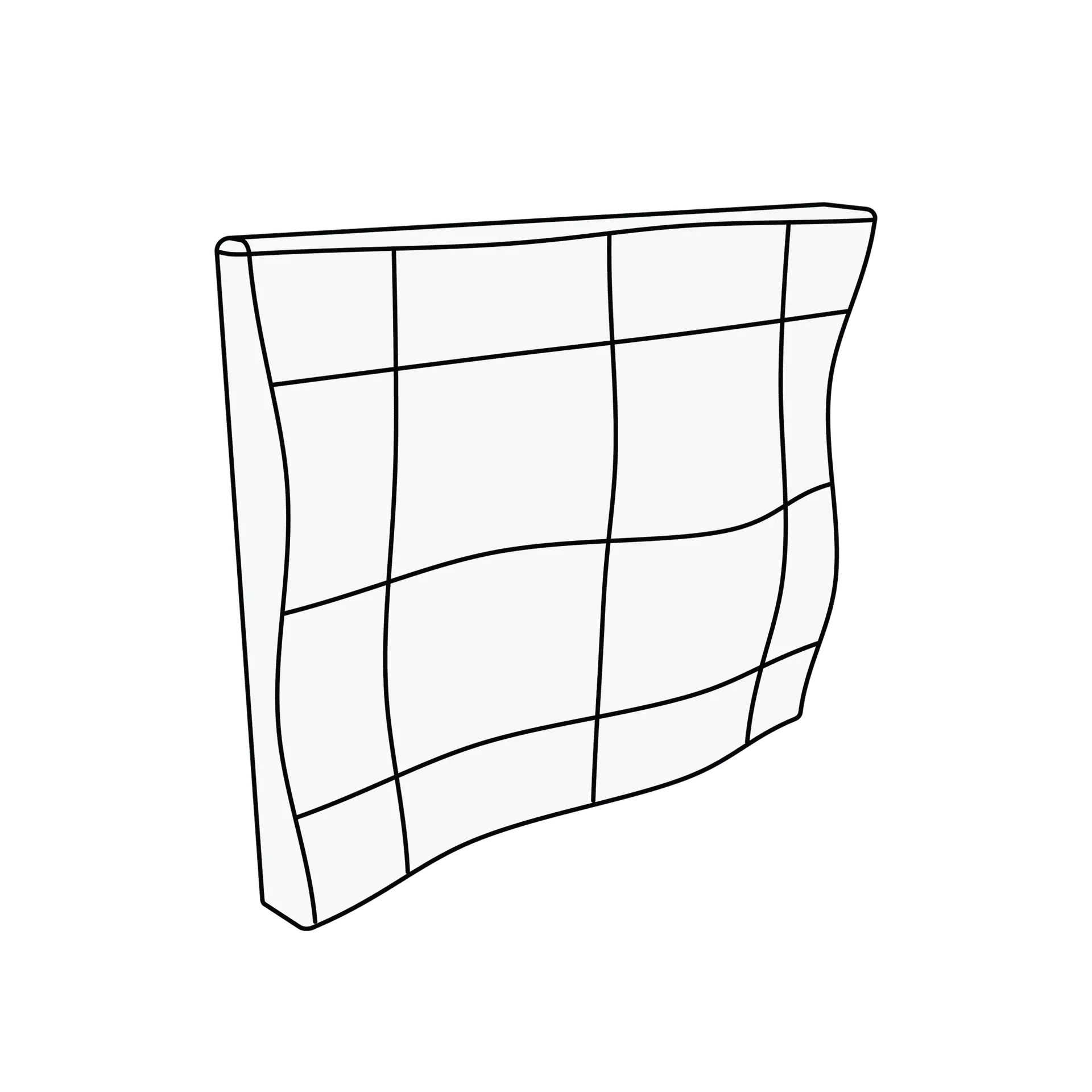

The S-5.26 modular tiles measure 575 mm by 575 mm, allowing for easy tile-to-tile tracking across large feature walls. The dynamic thickness ranges from a minimum of 20 mm at the lowest trough to a maximum of 80 mm at the peak of the wave crest. This variable depth assists in scattering sound reflections to break up flutter echoes.
Installation service available - Contact us for pricing.
Technical Specification Overview
| Feature | Detail |
| Product Name | Quietspace 3D Tile |
| Style Code / Pattern | S-5.26 / Wave |
| Composition | 100 percent Polyester Fibre (PET) |
| Recycled Content | Minimum 60 percent post-consumer recycled fibre |
| Acoustic Rating | 0.75 NRC (Noise Reduction Coefficient) |
| Fire Hazard Classification | Group 1 Rating (AS5637.1 / AS ISO9705) |
| Tile Dimensions | 575 mm x 575 mm |
| Profile Thickness | 20 mm Minimum to 80 mm Maximum |
| Coverage Area | 1.98 square metres per box (6 tiles) |
| Environmental Standard | Low VOC, Non-toxic, Certified Carbon Neutral |
| Mounting Mechanism | Concealed Snap-in Plastic Mounting Clips (Included) |
| Pack Quantity | 6 Tiles per box |
See manufacturer website for specific product warranty information.
