Australian Monitor ES250P: 250W Commercial Power Amplifier
The Australian Monitor ES250P is a commercial-grade single-channel power amplifier engineered to deliver reliable audio reinforcement in distributed public address systems. Housed in a robust 2 RU rack-mountable chassis, this booster amplifier provides 250 watts of continuous power. It is designed to cater directly to the requirements of budget-conscious commercial audio installations such as retail strips, educational facilities, office buildings, and hospitality venues where a cost-effective, high-output power stage is required.
Flexible Distributed Output Configurations

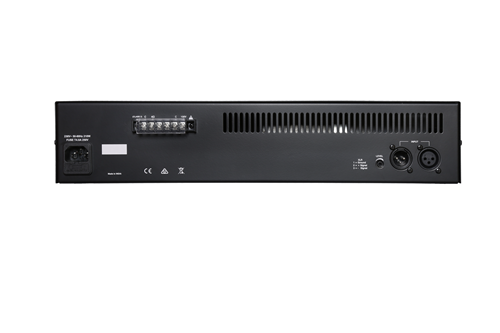

The output stage of the ES250P is highly versatile, supporting both low-impedance and constant-voltage speaker lines. It features heavy-duty barrier strip terminals on the rear panel that provide dedicated connections for traditional 4 Ohm speaker loads, as well as constant-voltage distributed setups operating on 70V or 100V lines. This makes the amplifier highly adaptable, allowing it to drive a localized cluster of low-impedance cabinets or a wide distributed network of ceiling speakers tapped across a large floor plate.
Streamlined Connectivity and System Integration
Designed for simple daisy-chain configurations in multi-amplifier rack layouts, the ES250P features streamlined balanced audio inputs. The rear panel is equipped with a 3-pin female XLR input alongside a 3-pin male XLR loop-through output. This configuration enables integration contractors to route a single line-level mix down an entire rack of power blocks without requiring external active distribution systems or patch arrays. A rear-mounted input level attenuator potentiometer is also provided, allowing installers to trim input gain to match specific hardware line levels and optimize system headroom.
Industrial Protection Systems and Monitoring

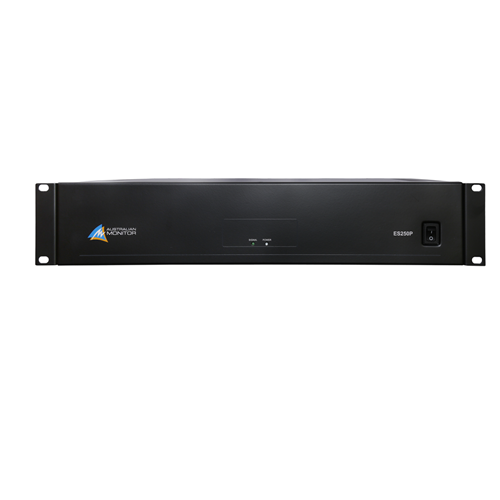

To handle the constant operation typical of public address installations, the ES250P incorporates robust protection circuitry. The integrated safety suite safeguards the amplifier against short circuits at the speaker terminals, thermal overloading, and excessive input signal driving. Active fan-assisted cooling manages airflow efficiently to keep operating temperatures stable under sustained loads. The front panel features a clean interface containing a master power switch and an operational LED display that tracks power availability, signal presence, and clip limiting status to simplify troubleshooting.
Technical Specification Overview
| Feature | Detail |
| Power Output | 250 Watts RMS |
| Output Modes | 4 Ohms, 70V Line, 100V Line |
| Chassis Size | 2 Rack Units (2 RU) |
| Input Connectors | 1 x 3-pin Balanced Female XLR |
| Loop Connectors | 1 x 3-pin Balanced Male XLR |
| Output Terminals | Rear Barrier Strip with touch-proof cover |
| Frequency Response | 60 Hz to 15 kHz |
| Total Harmonic Distortion | Less than 0.5 percent at rated power |
| Cooling System | Fan-Assisted Forced Air |
| Protection Circuitry | Short Circuit, Thermal, Overload |
| Front Indicators | Power Status, Signal Present, Clip/Limit |
| Dimensions (W x H x D) | 483 mm x 88 mm x 325 mm |
| Net Weight | 11.5 kg |
See manufacturer website for specific product warranty information.
