Bond
Bond Bridge Pro
Bond Bridge Pro
Couldn't load pickup availability
SKU:
Bond Bridge Pro: Professional Smart Hub for RF Device Integration
The Bond Bridge Pro is a professional-grade smart home hub engineered to bridge the gap between traditional radio frequency (RF) remote-controlled appliances and modern home automation systems. Designed specifically for professional installers and high-end residential projects, the Bond Bridge Pro allows for centralized control of motorized shades, ceiling fans, and fireplaces through a single, reliable interface. It expands upon the capabilities of the standard model by adding wired networking, increased range, and deeper integration with premium control platforms.
Advanced Connectivity and Wide RF Compatibility

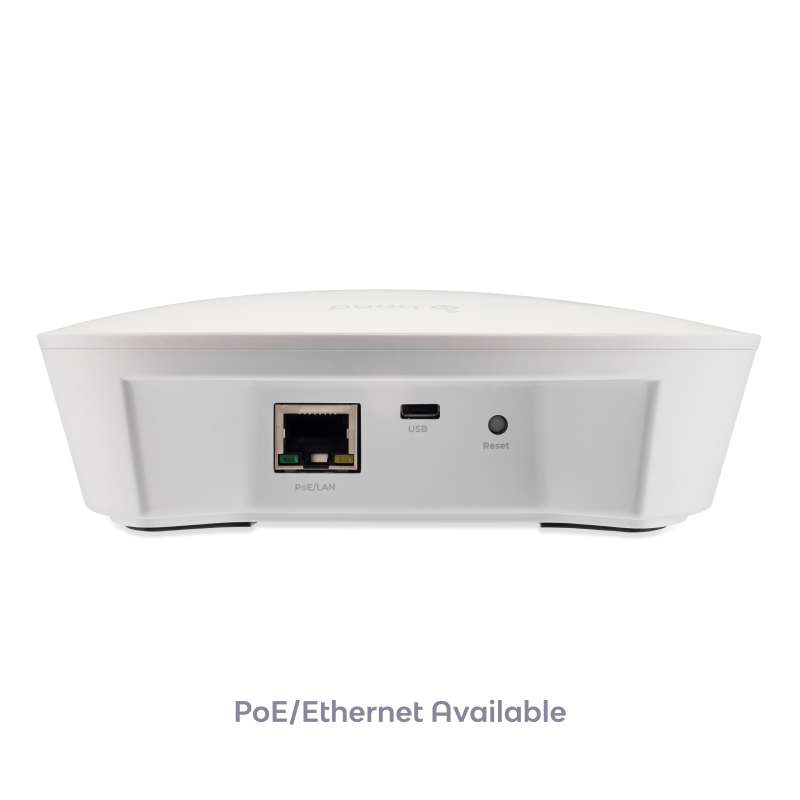

The Bond Bridge Pro utilises a powerful Sub-GHz radio system to communicate with devices operating within the 300 MHz to 450 MHz frequency range. This broad compatibility ensures seamless operation with leading motor brands such as Somfy RTS, Rollease Acmeda, and Dooya, as well as a vast array of third-party ceiling fans and fireplaces. Unlike standard wireless bridges, the Pro model features an Ethernet port and supports Power over Ethernet (PoE), providing a stable, hard-wired connection that reduces reliance on Wi-Fi and simplifies cable management.
The hub offers a significant increase in operational capacity, supporting up to 50 individual devices and covering areas up to 3,500 square feet. Its open Local API and dedicated drivers enable native integration with professional automation systems including Control4, ELAN, RTI, Savant, Crestron, and URC. For residential users, it remains fully compatible with Amazon Alexa, Google Assistant, and SmartThings, allowing for voice-controlled routines and schedules through the Bond Home app.
Professional Grade Design and Feedback

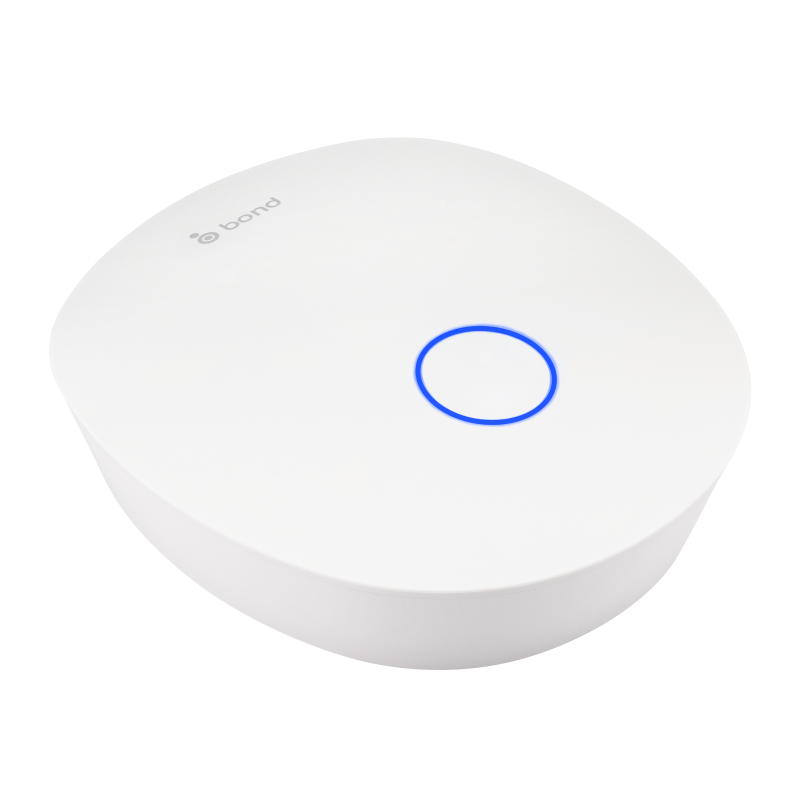

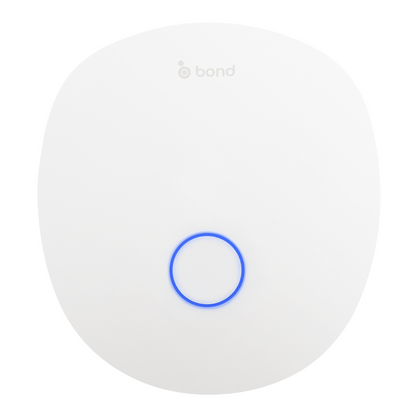

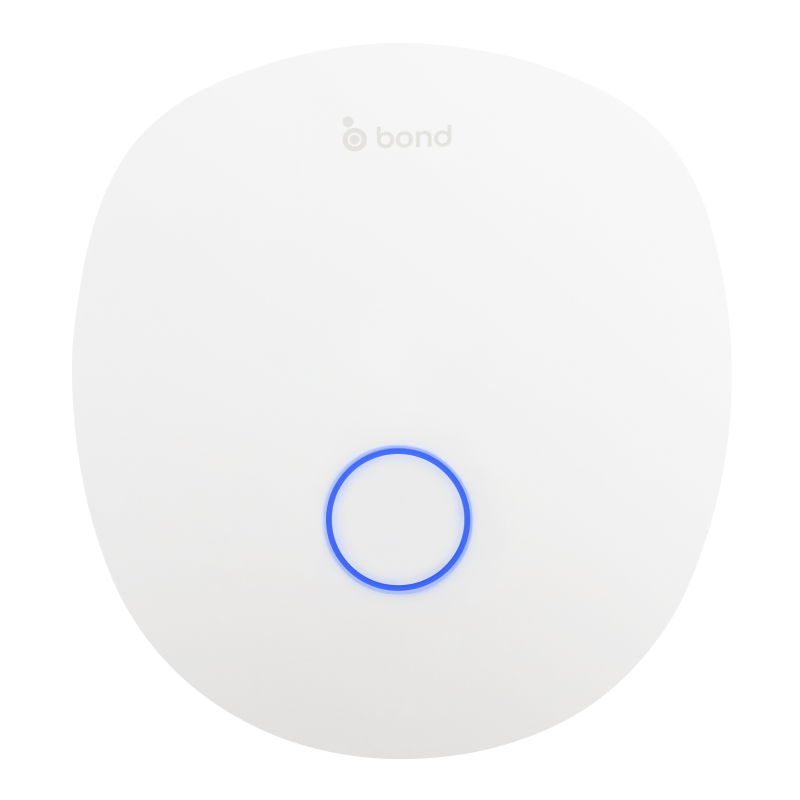

Designed for discreet placement, the Bond Bridge Pro features a sleek, matte white finish and is designed for easy ceiling or wall mounting. A key advantage of the Pro model is its ability to provide state feedback for select motor technologies when used in conjunction with the Sidekick for Shades keypad, ensuring the app and automation system are always aware of the device's current position.
The unit is powered via its USB port or through a PoE switch, and its professional design eliminates the need for complex hardwiring or workarounds during the setup process. Setup is highly efficient, often taking as little as 30 seconds per device through the intuitive mobile application.
Comprehensive Technical Specification Data
| Feature | Detail |
| Model Number | BD-1750 |
| RF Frequency Range | 300 MHz – 450 MHz |
| RF Coverage Range | Up to 3,500 sq ft |
| Device Capacity | Up to 50 devices |
| Network Connectivity | 2.4 GHz Wi-Fi or Ethernet |
| Power Options | 5V DC (USB) or PoE (802.3af/at) |
| Smart Home Compatibility | Alexa, Google Assistant, SmartThings, Apple HomeKit |
| Professional Integrations | Control4, ELAN, RTI, Savant, Crestron, URC |
| Mounting Options | Wall or Ceiling Mount |
| Dimensions (WxHxD) | 5.7 x 1.4 x 6.2 inches |
| Net Weight | 7.2 oz |
| Operating Temperature | Standard Indoor Conditions |
See manufacturer website for specific product warranty information.
